Description

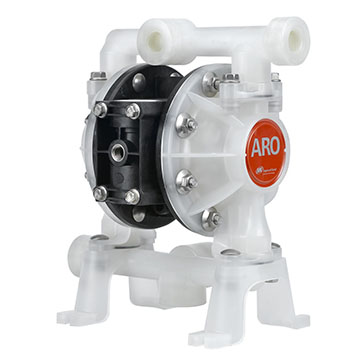

ARO Double Diaphragm Pump 1/2" Plastic multi port air operated
- Reliable - the patented unbalanced ARO air valve ensures high operational safety
- Environmentally friendly - Screwed construction for leakage-free pumping of liquids
- Maintenance-friendly - Easy access to the medium area through screwed chambers
- Low shear forces
- Compact design for applications in confined spaces
PD05P-BRS-PAA-B (Housing: PP / Media-carrying mat.: Santoprene):
Max. Flow rate: 54.5 l/min
Transmission ratio: 1:1
Max. Operating pressure: 6.9 bar
Displacement/cycle @ 6.9 bar: 0.15 l
Suction and discharge port: 1/2" BSP
Compressed air port: 1/4" NPTF
Diaphragm material: Santoprene
Ball material: Santoprene
Material Housing/Air Motor: Polypropylene
Material Hardware: SS316
Max. Solids Passage: 2.4 mm
Silencer: Integrated
Weight: 2.47 kg
Temperature Range: 2°to 79°C
ATEX Certified: No
Service kit air motor: 637428
Service kit liquid part: 637427-AA
Please contact us for further material configurations.
Spare parts / Operating instructions |
