Description

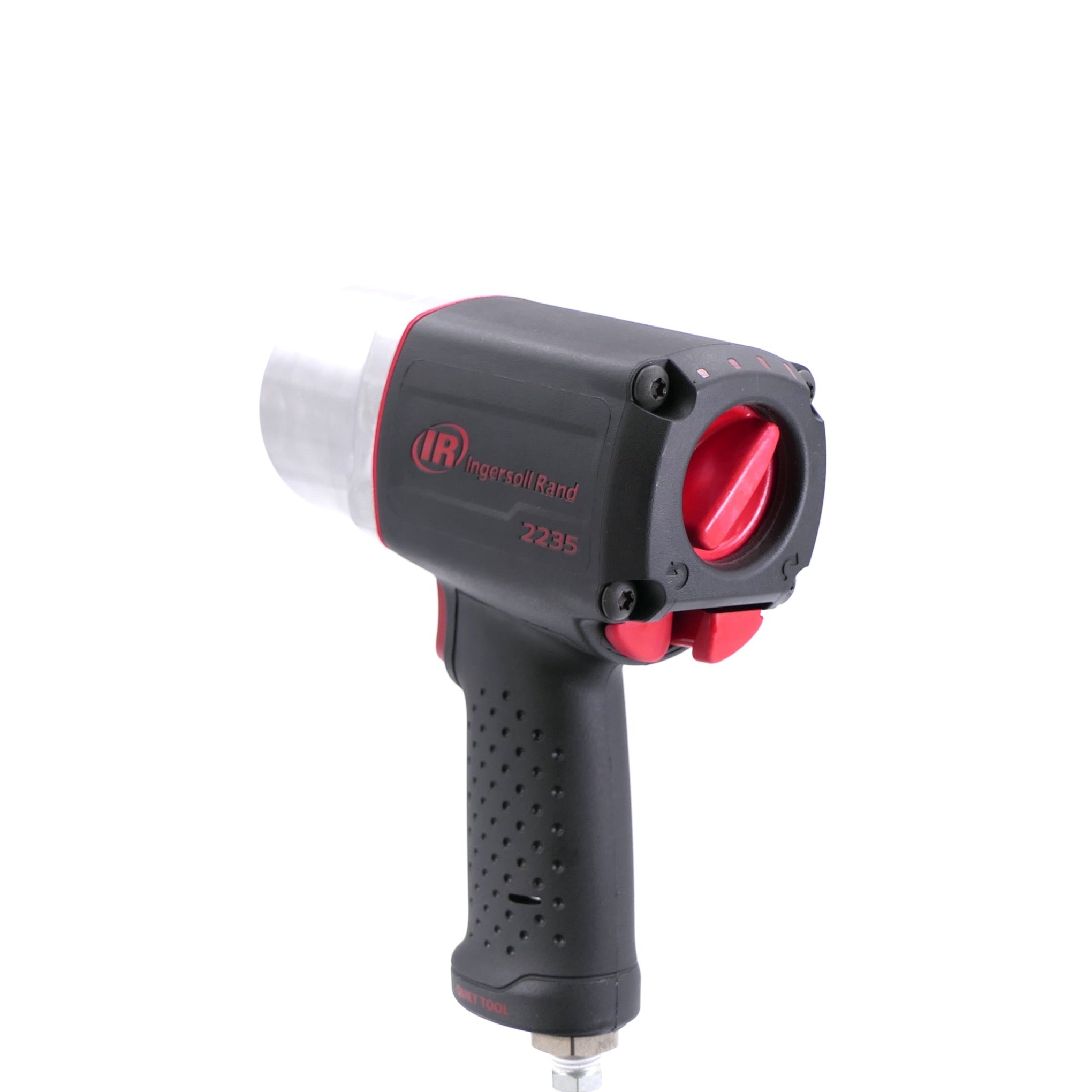

1/2" 2235QXPA Ingersoll Rand pneumatic impact wrench
- Maximum power with a maximum torque of 1220 Nm in reverse and a breakaway torque of 1760 Nm
- Composite housing made of composite material
- Aluminum impact housing
- Maximum reliability, covered by a 2-year warranty
|
Drive square: |
½" |
|
Maximum tightening torque: |
1220 Nm |
|
Maximum breakaway torque: |
1760 Nm |
|
Max. inlet pressure: |
6.2 bar |
|
Maximum speed: |
8500 rpm |
|
Stroke rate / minute: |
1220 |
|
Compressed air connection: |
¼" NPTF |
|
Required air supply: |
10 mm minimum hose diameter |
|
Maximum air consumption: |
11.30 l/s |
|
Length: |
7.6 inches |
|
Vibration value ISO28927: |
9.0/2.8 m/s²/K(1) |
|
Maximum sound level: |
88.7 dB(A) |
|
Silencer: |
Integrated |
|
Weight: |
2.1 kg |
|
ATEX certified: |
No |
|
Service/tune-up kit available in the shop: |
|
|
Protective cover available in the shop: |
|
