Description

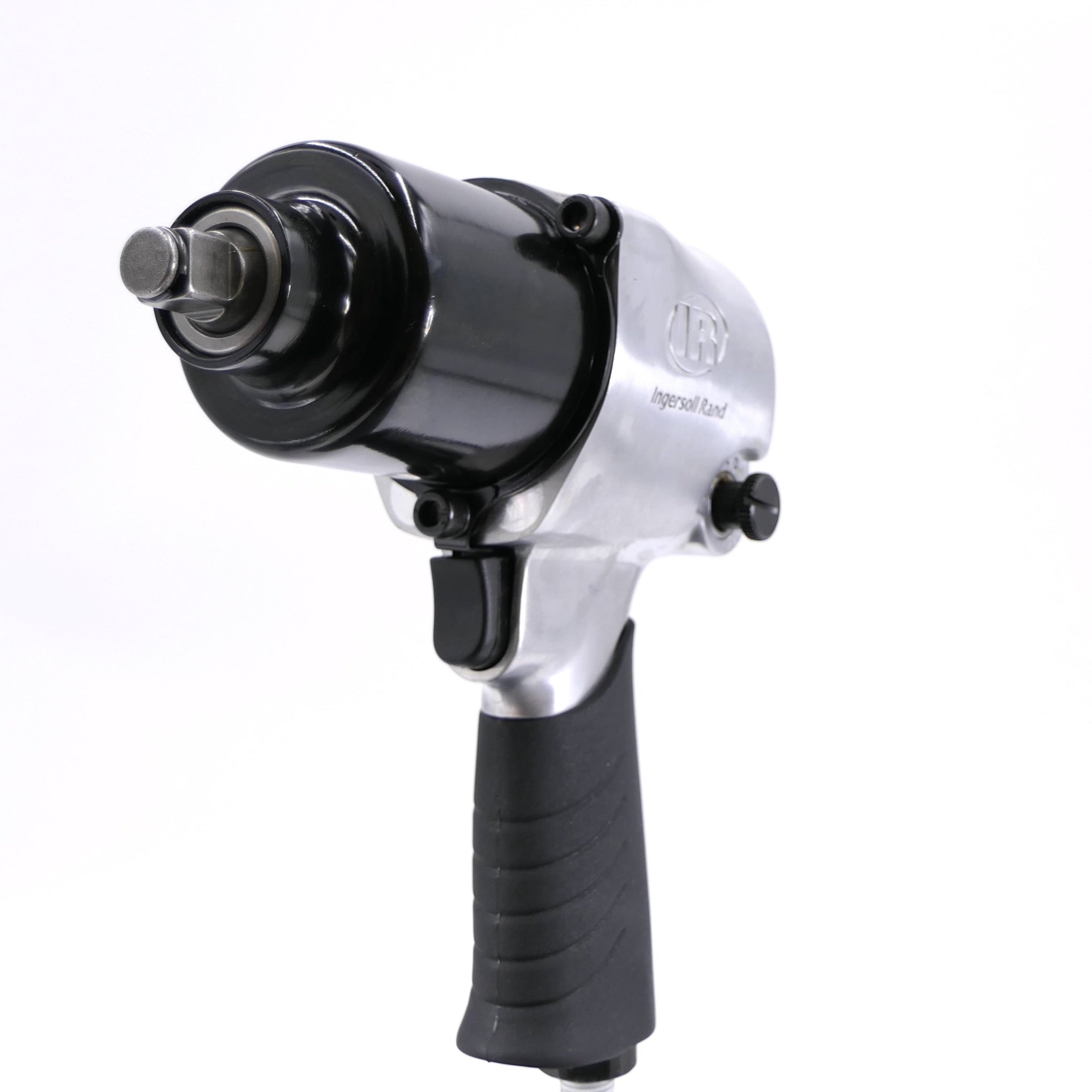

1/2" 231GXP Ingersoll Rand pneumatic impact wrench
- A robust classic
- Maximum torque of 610 Nm in reverse
- double hammer impact mechanism
- Steel hammer housing
- Five-stage power regulator
|
Drive square: |
1/2" with retaining ring |
|
Tightening torque at 6.2 bar: |
407 Nm |
|
Breakaway torque at 6.2 bar: |
610 Nm |
|
Max. inlet pressure 6.2 bar: |
6.2 bar |
|
Maximum speed: |
8000 rpm |
|
Stroke rate / minute: |
1200 |
|
Compressed air connection: |
¼" NPTF |
|
Required air supply: |
10 mm minimum hose diameter |
|
Maximum air consumption: |
10.3 l/s |
|
Length: |
185 mm |
|
Vibration value according to ISO 28927: |
6.3/2.1 m/s2/K(1) |
|
Maximum sound level: |
91.5 dB(A) |
|
Silencer: |
Integrated |
|
Weight: |
2.63 kg |
|
ATEX certified: |
No |
