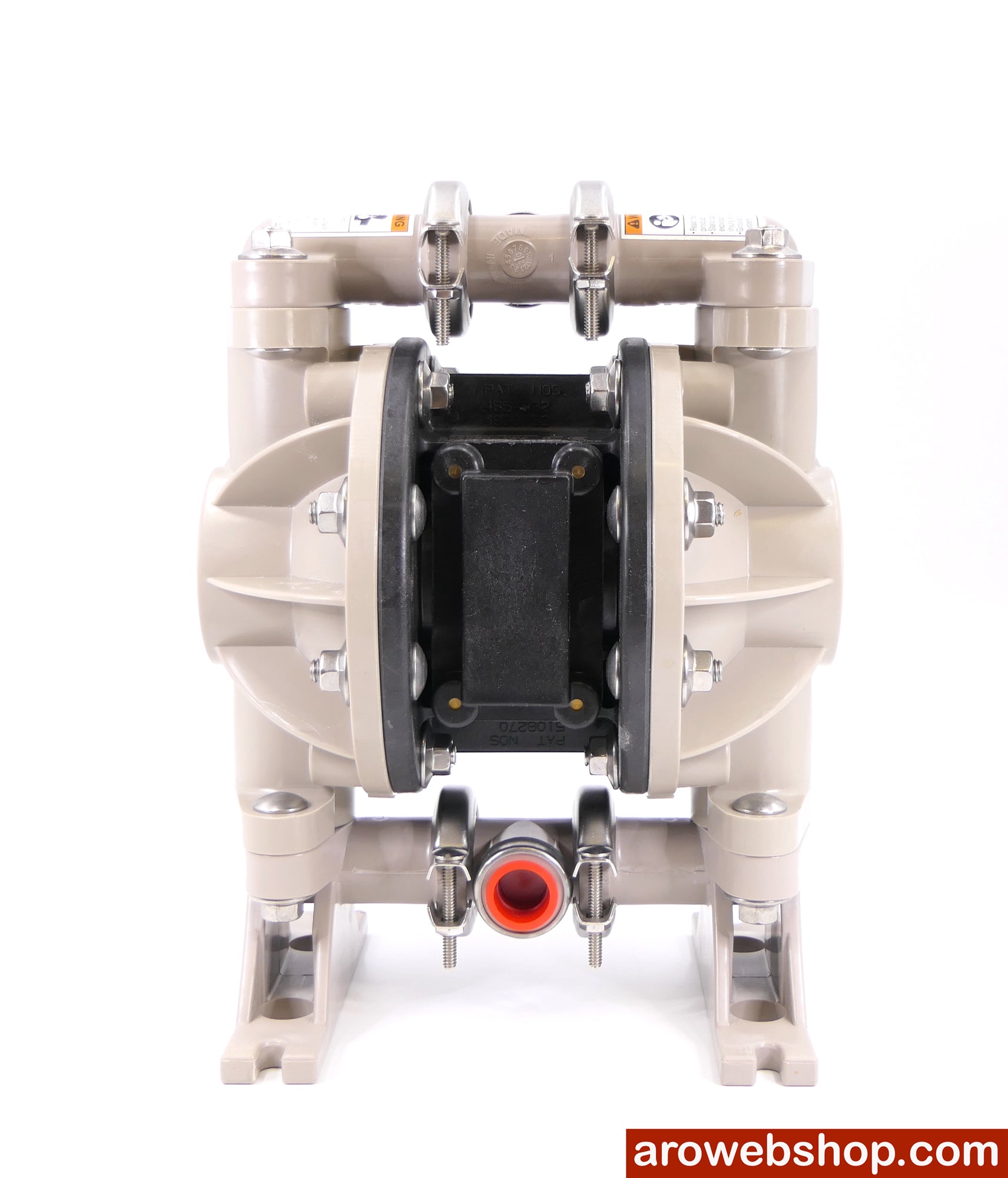

666053-333 ARO double diaphragm pump 1/2" plastic, rotating connections, air operated

aro-fluidtechnikSKU: 666053-333
filler

Price:
Offer price €1.536,00

  excl. tax

Calculate shipping costs at checkout

Delivery time:
7-10 working days
Stock:
Available

Description

666053-333 ARO Double diaphragm pump 1/2" plastic, swivel connections, air operated

  • Reliable - the patented unbalanced ARO air valve ensures high operational safety
  • Multiple connection options for your application needs
  • Rotatable connections for more installation options
  • Environmentally safe - bolted construction for leak-free pumping of liquids
  • Easy maintenance - easy access to the medium area due to screwed chambers

Max. delivery rate:

49,2 L/min.

Ratio:

1:1

Max. Operating Pressure:

6.9 bar

Max. inlet pressure:

0,69 bar

Displacement / cycle @ 6.9 bar:

0,15 Litres

Suction and discharge connection:

1/2" NPTF

Compressed air connection:

¼" NPTF

material of the medium:

Polypropylene

Material air motor:

Polypropylene

Material Hardware:

SS316

Diaphragm material:

Viton

Material ball:

Viton

Material ball seat:

Polypropylene

Max. Solids passage:

2.4 mm

Silencer:

Integrated

Weight:

3.3 kg

Temperature range:

+2° to +79° C

ATEX certified:

No





Air motor service kit available in the store:

637141

Service kit fluid part:

637140-33

General information

Product data sheet

Spare parts / Operating instructions
