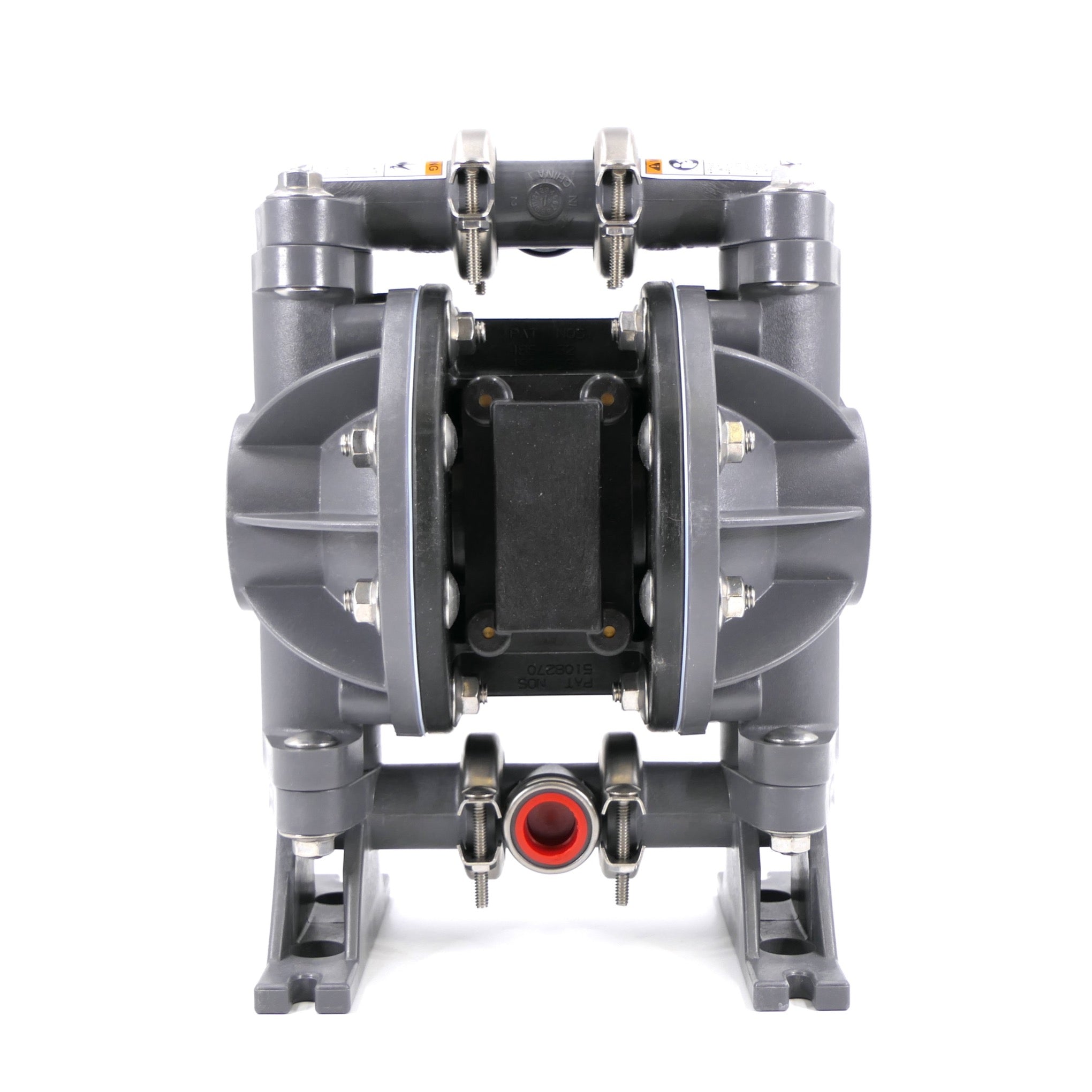

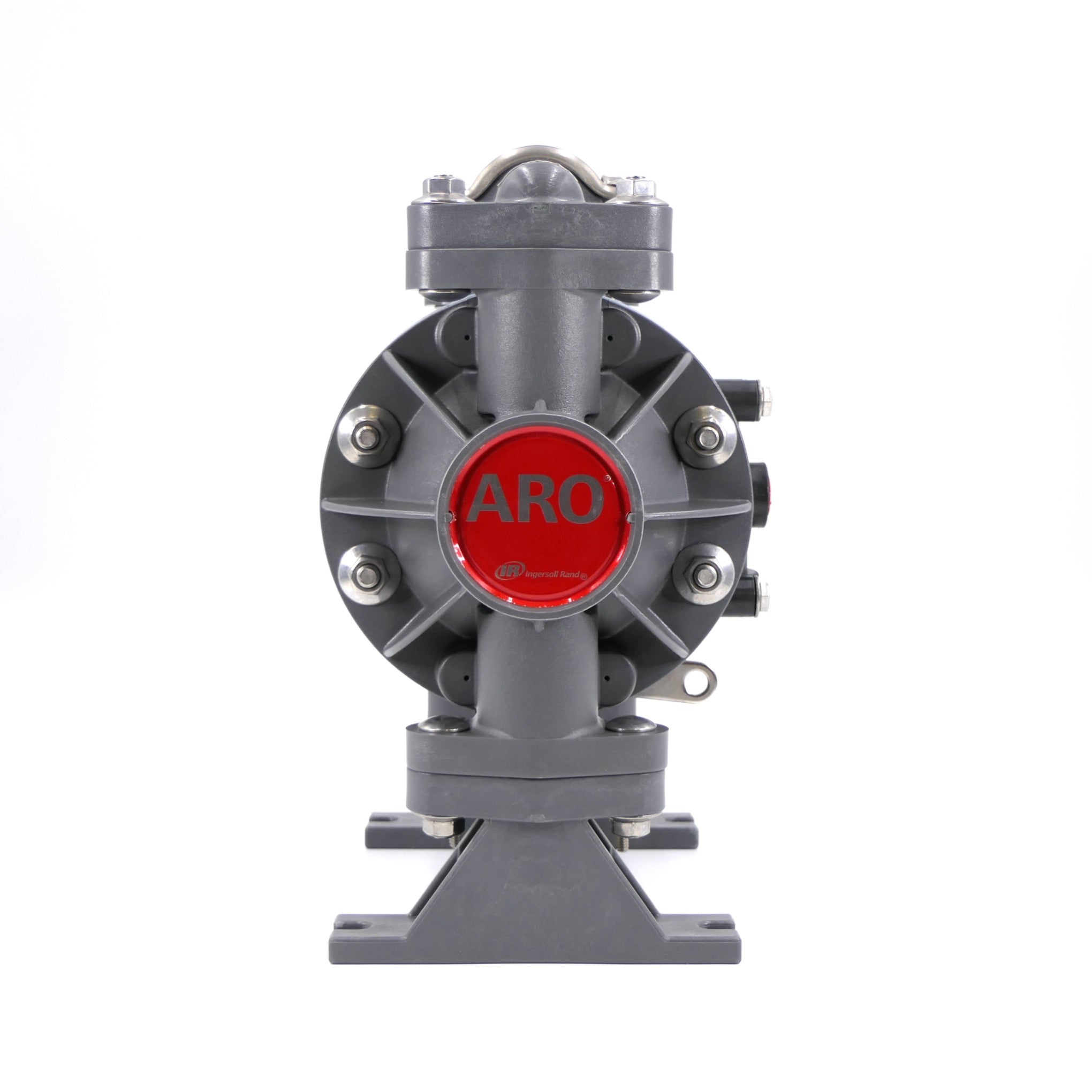

666056-644 ARO Double Diaphragm Pump 1/2" Plastic, air-operated ATEX
- Reliable – the patented unbalanced ARO air valve ensures high operational reliability
- Multiple connection options for your application needs
- Environmentally safe - bolted construction for leak-free pumping of liquids
- Easy maintenance - easy access to the medium area due to screwed chambers
|
Max. Delivery Rate: |
49.2 L/min. |
|
Ratio: |
1:1 |
|
Max. operating pressure: |
6.9 bar |
|
Max. inlet pressure: |
0.69 bar |
|
Displacement / cycle @ 6.9 bar: |
0.15 liters |
|
Suction and pressure connection: |
1/2" NPTF |
|
Air Connection: |
¼” NPTF |
|
Wetted Material: |
Conductive Acetal |
|
Air Motor Material: |
Polypropylene |
|
Hardware material: |
SS316 |
|
Diaphragm Material: |
PTFE |
|
Ball material: |
PTFE |
|
Ball Seat Material: |
Acetal |
|
Max. solids passage: |
2.4 mm |
|
Silencer: |
Integrated |
|
Weight: |
3.3 kg |
|
Temperature range: |
+2° to +79° C |
|
ATEX certified: |
ATEX – Group II 2GD X |
|
|
|
|
Air motor service kit available in the store: |
|
|
Service kit fluid part: |
637140-44 |
