Specifications
- Material: Polypropylene
- Connection: 1/2"
- Series: Pro Series
Shipping & Ordering Information
- Delivery time: 2–6 days
- Project pricing and volume discounts available upon request
- Delivery times vary depending on the model
- Technical consulting and design available upon request
Description

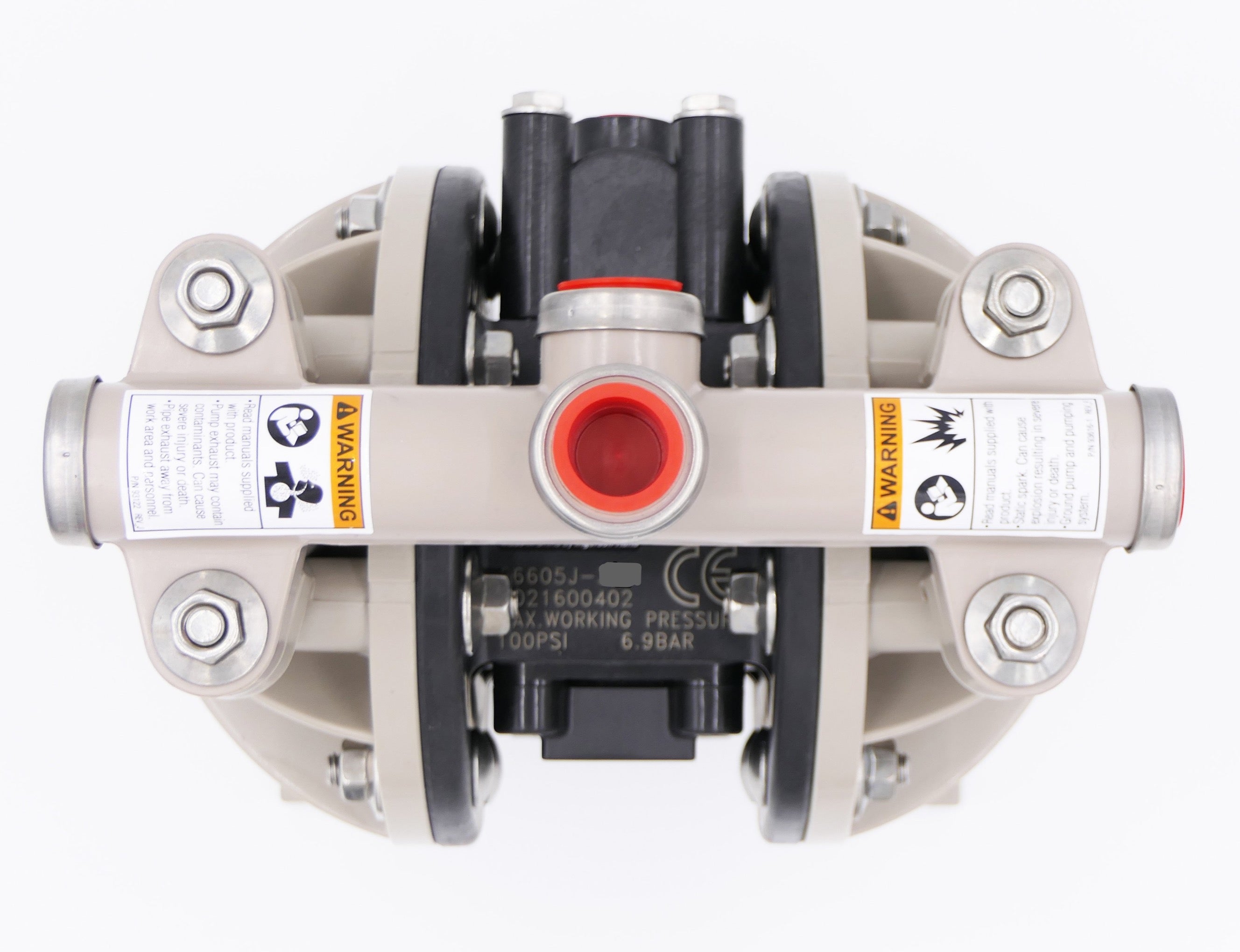

66605J-344 ARO double diaphragm pump 1/2" Plastic,compressed air operated
- Reliable – the patented unbalanced ARO air valve ensures high operational reliability
- Multiple connection options for your application needs
- Environmentally friendly – bolted construction for leak-free transport of liquids
- Easy to maintain – simple access to the medium area thanks to bolted chambers
|
Maximum flow rate: |
49.2 L/min. |
|
Ratio: |
1:1 |
|
Maximum operating pressure: |
6.9 bar |
|
Max. inlet pressure: |
0.69 bar |
|
Displacement /cycle @ 6.9 bar: |
0.15liters |
|
Suction and pressure connection: |
1/2" NPTF |
|
Compressed air connection: |
¼" NPTF |
|
Material mediums touched: |
polypropylene |
|
Air motor material: |
polypropylene |
|
Hardware materials: |
SS316 |
|
Membrane material: |
PTFE |
|
Ball material: |
PTFE |
|
Ball seat material: |
polypropylene |
|
Max. solid passage: |
2.4 mm |
|
Silencer: |
Integrated |
|
Weight: |
3.3 kg |
|
Temperature range: |
+2° to+79° C |
|
ATEX certified: |
No |
|
|
|
|
Air motor service kit available in the shop: |
|
|
Service kitforfluid section: |
637140-44 |
