Specifications
- Material: Aluminum
- Connection: 1"
- Series: Pro Series
- ATEX: compliant
Shipping & Ordering Information
- Delivery time: 2–6 days
- Project pricing and volume discounts available upon request
- Delivery times vary depending on the model
- Technical consulting and design available upon request
Description

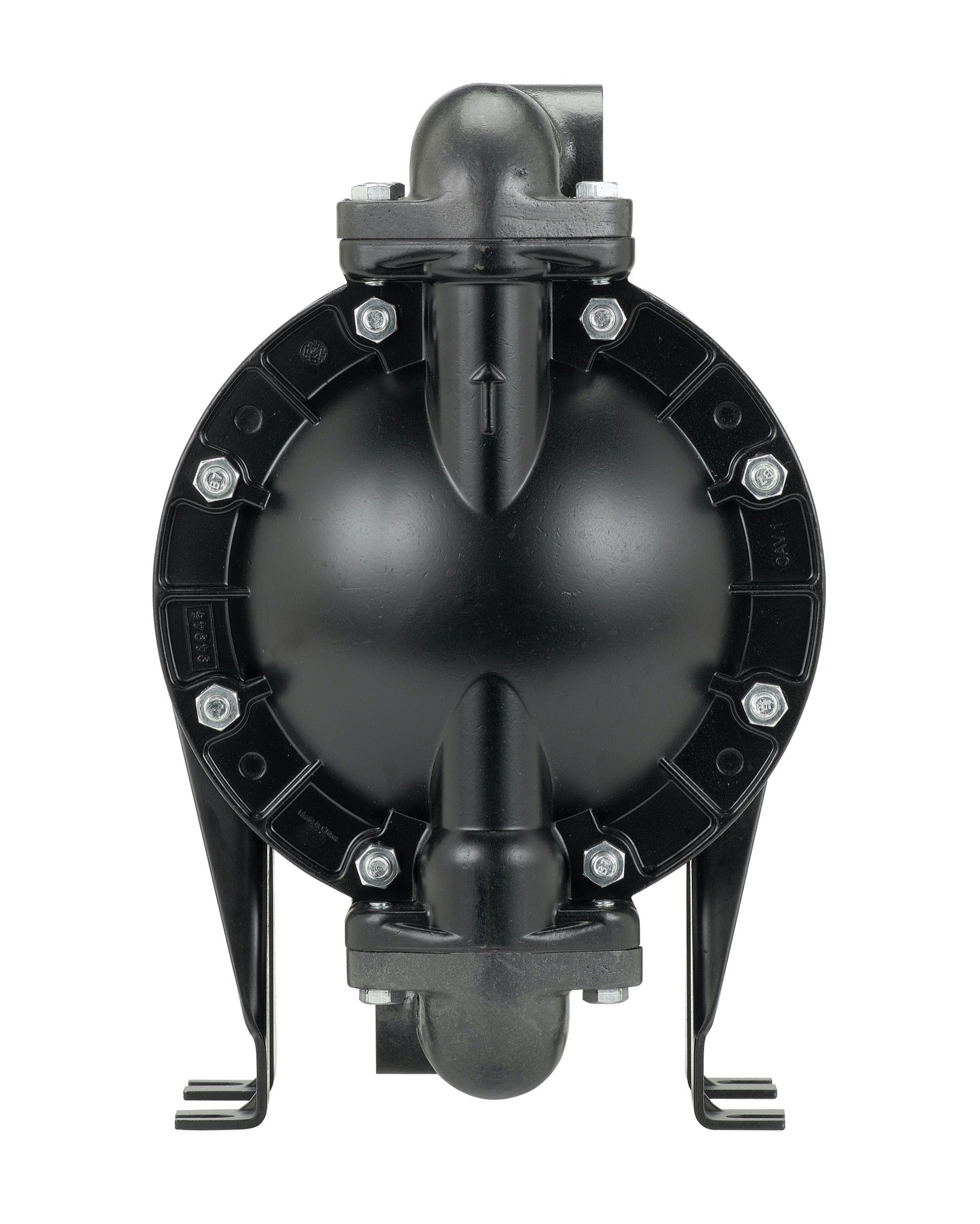

666120-144-C ARO Double Diaphragm Pump ProSeries 1" Metal, Pneumatic
-
The ARO Pro Series 1" metal double-diaphragm pump is a high-performance, air-powered solution for industrial applications. It offers exceptional reliability, a durable design, and safe operation even under demanding conditions.
✔ High operational reliability thanks to the proven ARO air valve
✔ Robust metal construction for long-lasting use
✔ Ideal for industrial fluid transfer
✔ Low-maintenance and reliable in continuous operation
|
Maximum flow rate: |
133 L/min. |
|
Ratio: |
1:1 |
|
Maximum operating pressure: |
8.3 bar |
|
Max. inlet pressure: |
0.69 bar |
|
Displacement / cycle @ 6.9 bar: |
0.60 liters |
|
Suction and pressure connection: |
1" BSP F |
|
Compressed air connection: |
¼" NPTF |
|
Material mediums touched: |
aluminum |
|
Air motor material: |
aluminum |
|
Hardware materials: |
steel |
|
Membrane material: |
PTFE |
|
Ball material: |
PTFE |
|
Ball seat material: |
aluminum |
|
Max. solid passage: |
3.2 mm |
|
Silencer: |
mounted |
|
Sound level: |
64.5 dB(A) |
|
Weight: |
8.62 kg |
|
Temperature range: |
+4° to +107° C |
|
ATEX certified: |
ATEX – Group II 2GD X |
|
|
|
|
Air motor service kit available in the shop: |
|
|
Service kit for fluid part available in the shop: |
|
