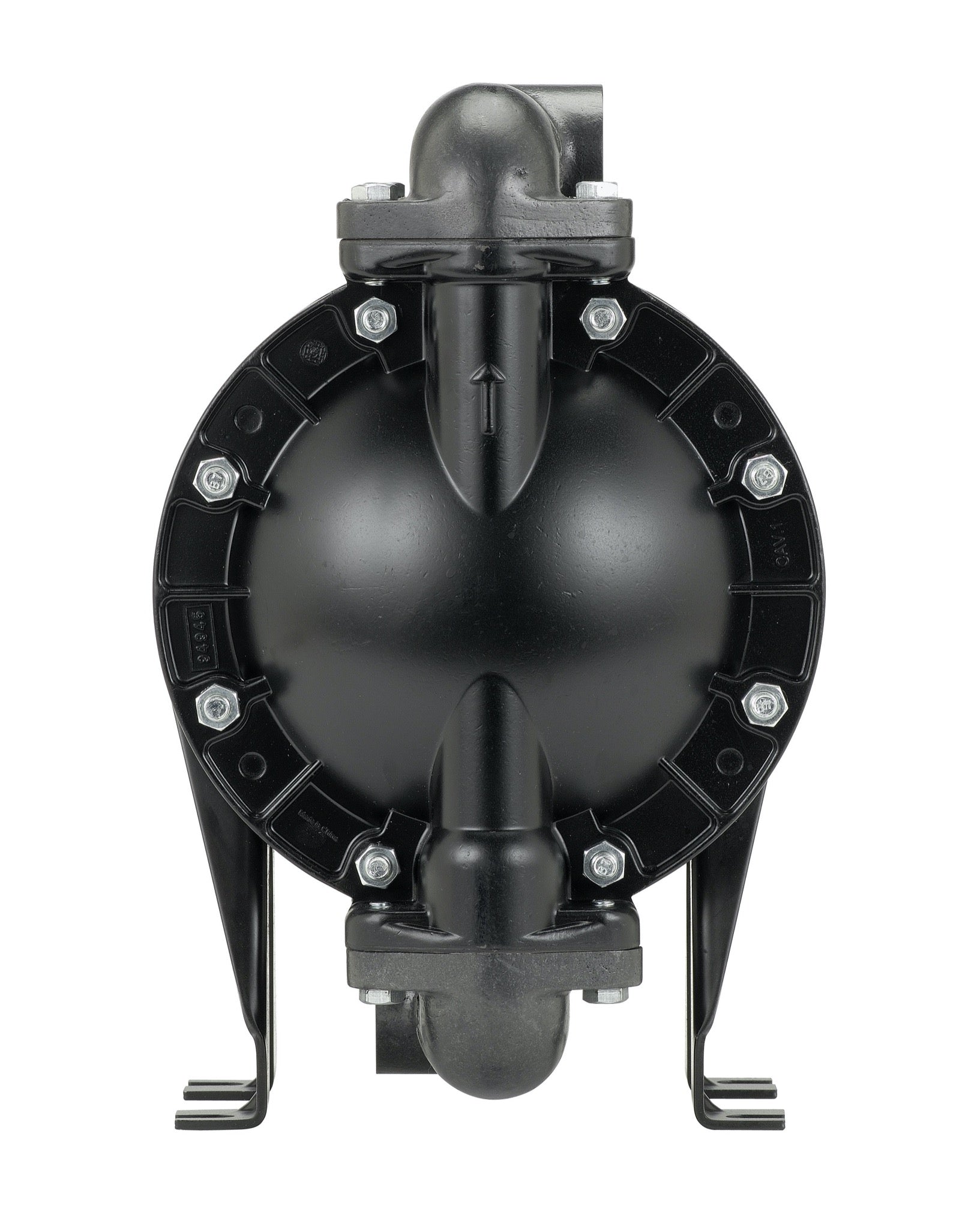

666120-322-C ARO Double diaphragm pump ProSeries 1" metal, air operated
- Reliable – the patented unbalanced ARO air valve ensures high operational reliability
- Environmentally safe - bolted construction for leak-free pumping of liquids
- Easy maintenance - easy access to the medium area through screwed chambers
|
Max. Delivery Rate: |
133 L/min. |
|
Ratio: |
1:1 |
|
Max. operating pressure: |
8.3 bar |
|
Max. inlet pressure: |
0.69 bar |
|
Displacement / cycle @ 6.9 bar: |
0.60 liters |
|
Suction and pressure connection: |
1" BSP F |
|
Air Connection: |
¼” NPTF |
|
Wetted Material: |
Aluminium |
|
Air Motor Material: |
Aluminium |
|
Hardware material: |
Steel |
|
Diaphragm Material: |
Nitrile |
|
Ball material: |
Nitrile |
|
Ball Seat Material: |
Polypropylene |
|
Max. solids passage: |
3.2 mm |
|
Silencer: |
mounted |
|
Sound level: |
64.5 dB(A) |
|
Weight: |
8.62 kg |
|
Temperature range: |
2° to +79° C |
|
ATEX certified: |
ATEX – Group II 2GD X |
|
|
|
|
Air motor service kit available in the store: |
|
|
Service kit fluid part available in the store: |
|
