Specifications
Shipping & Ordering Information
- Delivery time: 2–6 days
- Project pricing and volume discounts available upon request
- Delivery times vary depending on the model
- Technical consulting and design available upon request
Description

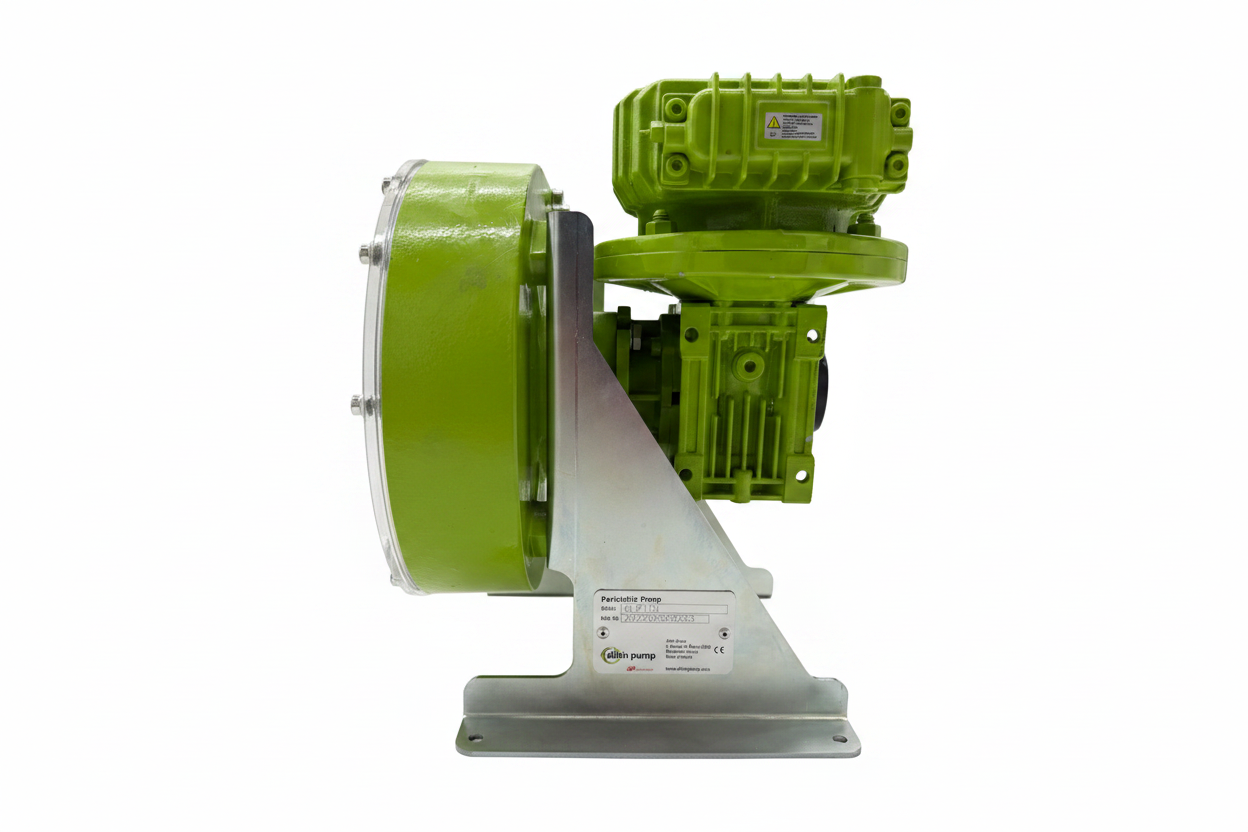

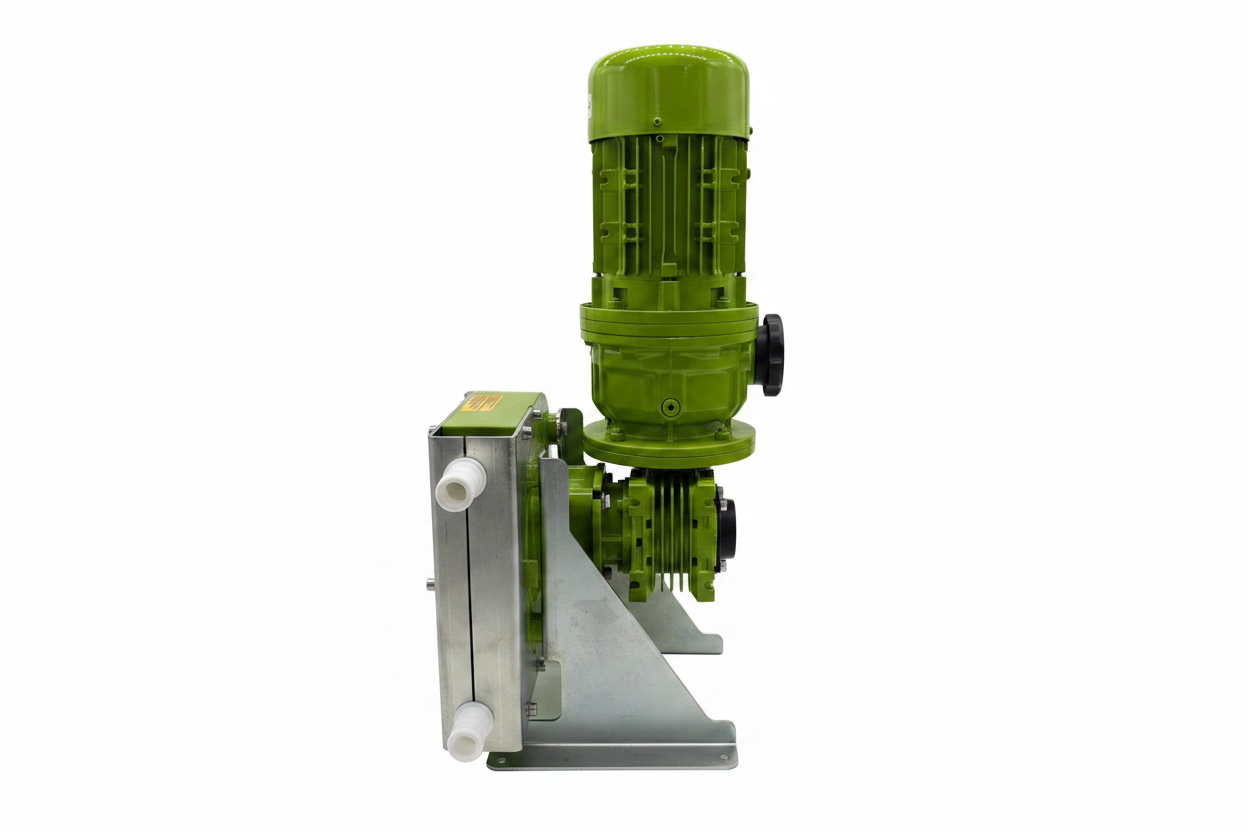

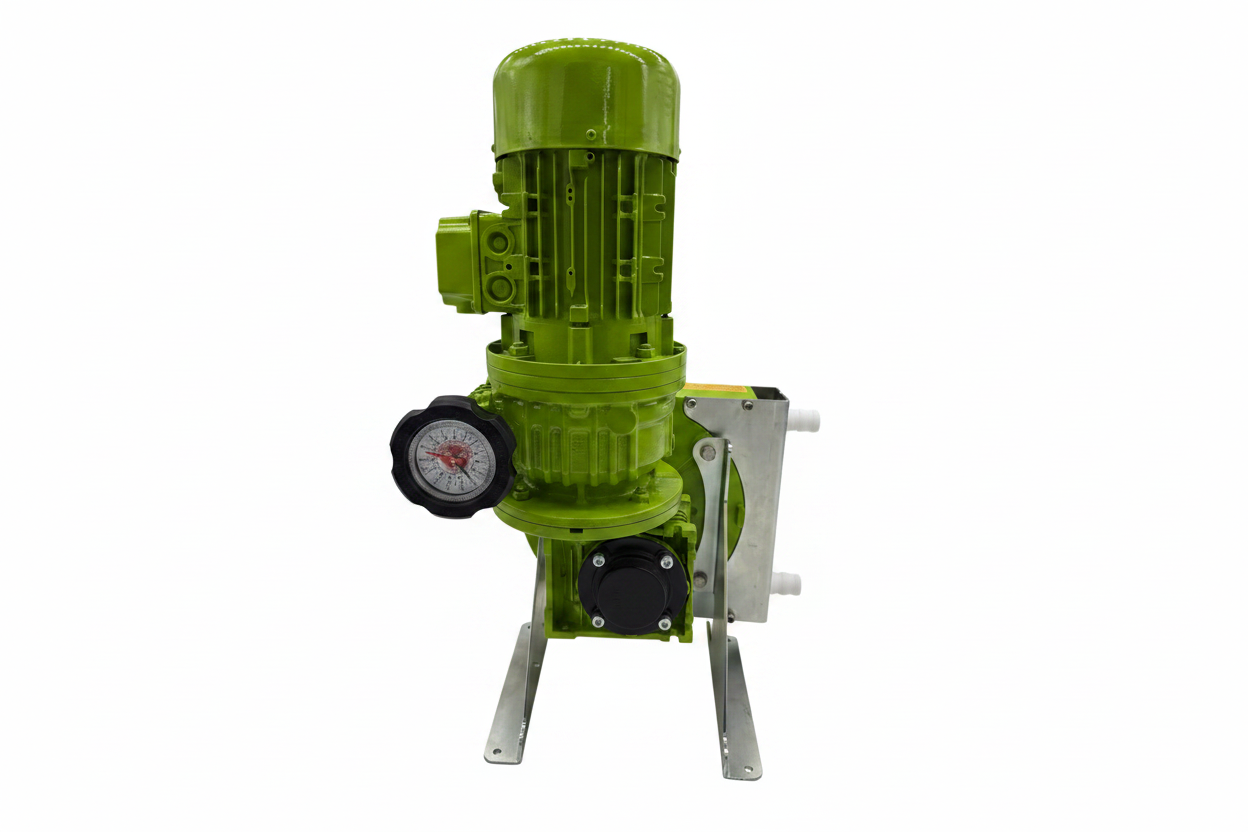

Albin Pump ALP17N Peristaltic Pump
The ALP17N peristaltic pump is a high-performance industrial pump designed for demanding transfer and metering applications. Thanks to its robust peristaltic pump design, it is ideal for abrasive, viscous, shear-sensitive, or chemically aggressive fluids.
The ALP17N stands out for its self-priming capability, dry-running capability, and ease of maintenance. Thanks to its optimized N-design, this new generation offers improved hose routing, reduced risk of leaks, and greater operational reliability.
Benefits at a glance
- Self-priming up to 9.8 m
- Can run dry without damage
- Flow rate up to approx. 650 l/h
- Delivery pressure up to 4 bar
- Ideal for abrasive and viscous fluids
- Gentle handling of shear-sensitive liquids
- Quick and easy hose maintenance
- Low maintenance costs
- High operational reliability
- Suitable for chemical and industrial applications
- Improved hose retention in the N Series
- Quiet operation at less than 60 dB
Ideal for
- Chemical and Process Industries
- Water and Wastewater Technology
- Food and Beverage Industry
- Slurry and dosing applications
- Conveying abrasive materials
- Viscous liquids and suspensions
- Industrial dosing and conveying systems
Technical Specifications
|
Specifications |
Details |
|---|---|
|
model |
ALP17N |
|
Pump type |
Peristaltic tube pump |
|
Flow rate |
up to approx. 650 l/h |
|
Max. pressure |
4 bar |
|
Self-priming |
up to 9.8 m |
|
Dry running |
Yes |
|
Pump hose materials |
NR, NBR, EPDM, Viton, Hypalon, etc. |
|
Noise level |
< 60 dB |
|
Weight |
approx. 15 kg |
|
Applications |
Industry & Fluid Technology |
|
Design |
Compact peristaltic pump |
Features of the ALP Series
The ALP series from Albin Pump was specifically designed for low-maintenance and reliable pumping processes. Thanks to the peristaltic operating principle, only the hose comes into contact with the fluid. This makes the pump ideal for aggressive, abrasive, or sensitive fluids.
Available hose materials
- Natural rubber (NR)
- NBR / Nitrile
- EPDM
- Viton / FKM
- Hypalon / CSM
- silicone
- Food-grade versions available
