Specifications
- Material: Acetal/conductive
- Connection: 1/4"
- Series: Exp Series
- ATEX: compliant
Shipping & Ordering Information
- Delivery time: 2–6 days
- Project pricing and volume discounts available upon request
- Delivery times vary depending on the model
- Technical consulting and design available upon request
Description

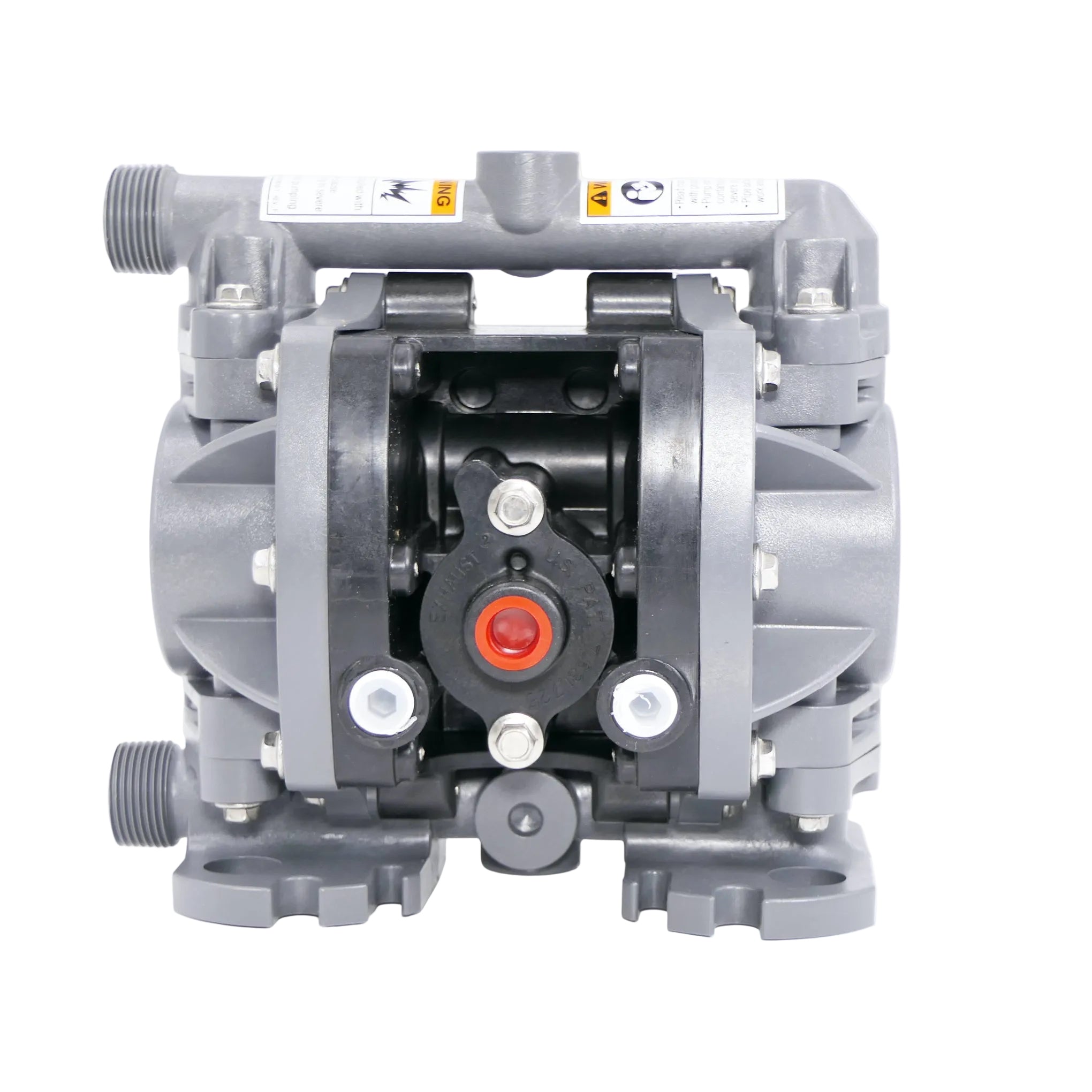

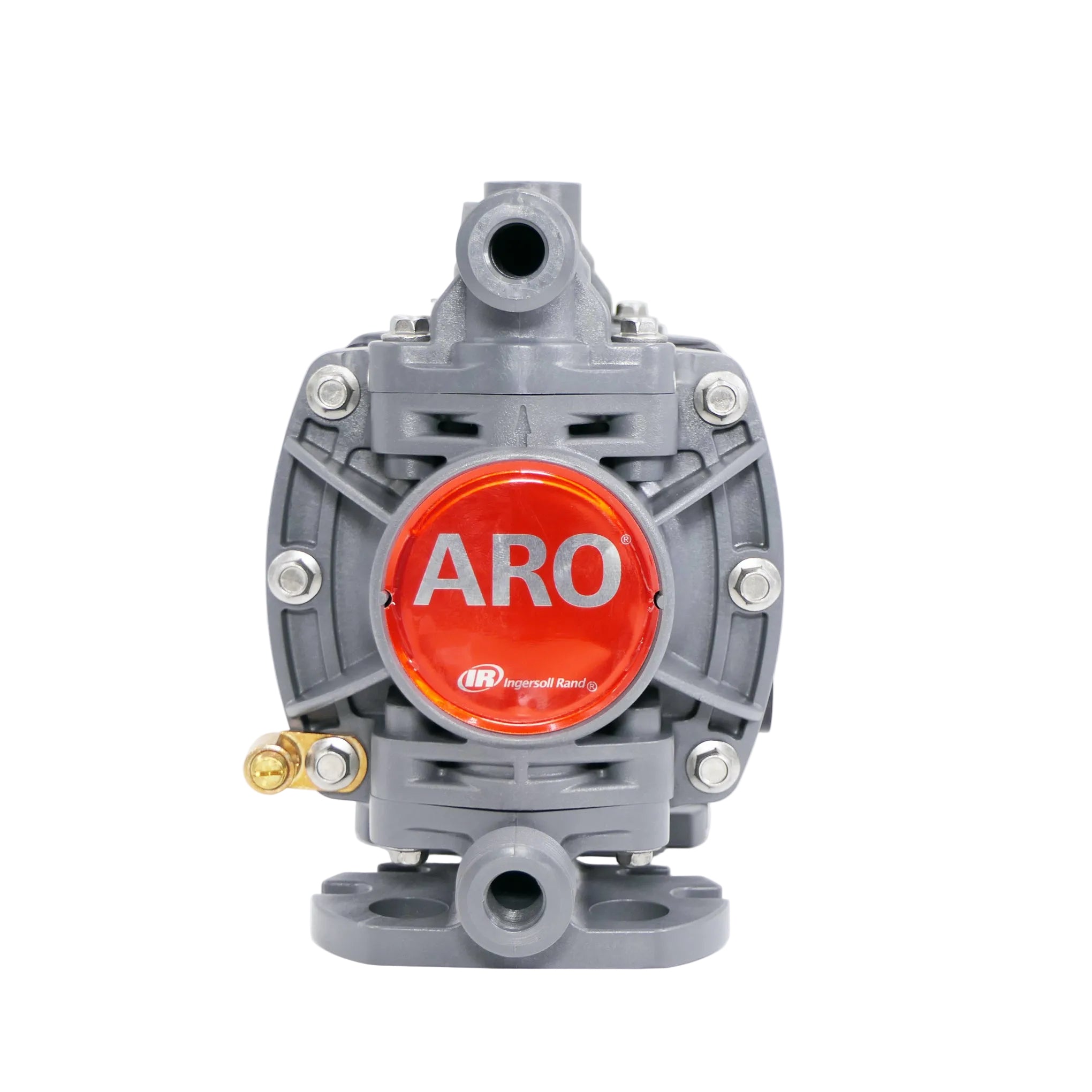

ARO double diaphragm pump 1/4" Plastic, ATEX - conductive, compressed air operated
- ATEX certified - Pump made of conductive acetal
- Reliable – the patented unbalanced ARO air valve ensures high operational reliability
- Environmentally friendly – bolted construction for leak-free transport of liquids
- Easy to maintain – simple access to the medium area thanks to bolted chambers
- Low shear forces
- Compact design for applications in confined spaces
PD01E-HDS-DAA-A (Housing: Acetal / Media-contacting material: Santoprene):
Max. flow rate: 20 l/min
Gear ratio: 1:1
Max. operating pressure: 8.6 bar
Min. operating pressure: 0.69 bar
Displacement/cycle @ 8.6 bar: 0.072 l
Suction and pressure connection: Hybrid 1/4" NPTF - 1/4" BSP
Compressed air connection: 1/4" NPTF
Diaphragm material: Santoprene
Ball material: Santoprene
Housing material: Acetal (conductive)
Air motor: Conductive polypropylene
Hardware material: SS316
Max. solid passage: 1.6 mm
Silencer: Integrated
Weight: 1.6 kg
Temperature range:-29° to 82° C
ATEX certified: ATEX – Group II 2GD X
PD01E-HDS-DTT-A (Housing: Acetal / Media-wetted material: PTFE):
Max. flow rate: 20 l/min
Gear ratio: 1:1
Max. operating pressure: 8.6 bar
Min. operating pressure: 0.69 bar
Displacement/cycle @ 8.6 bar: 0.072 l
Suction and pressure connection: Hybrid 1/4" NPTF - 1/4" BSP
Compressed air connection: 1/4" NPTF
Diaphragm material: PTFE
Ball material: PTFE
Housing material: Acetal (conductive)
Air motor: Conductive polypropylene
Hardware material: SS316
Max. solid passage: 1.6 mm
Silencer: Integrated
Weight: 1.6 kg
Temperature range:4° to 82° C
ATEX certified: ATEX – Group II 2GD X
For further material configurations, please contact us.
