Specifications
- Material: Polypropylene
- Connection: 1"
- Series: Exp Series
Shipping & Ordering Information
- Project pricing and volume discounts available upon request
- Delivery times vary depending on the model
- Technical consulting and design available upon request
Description

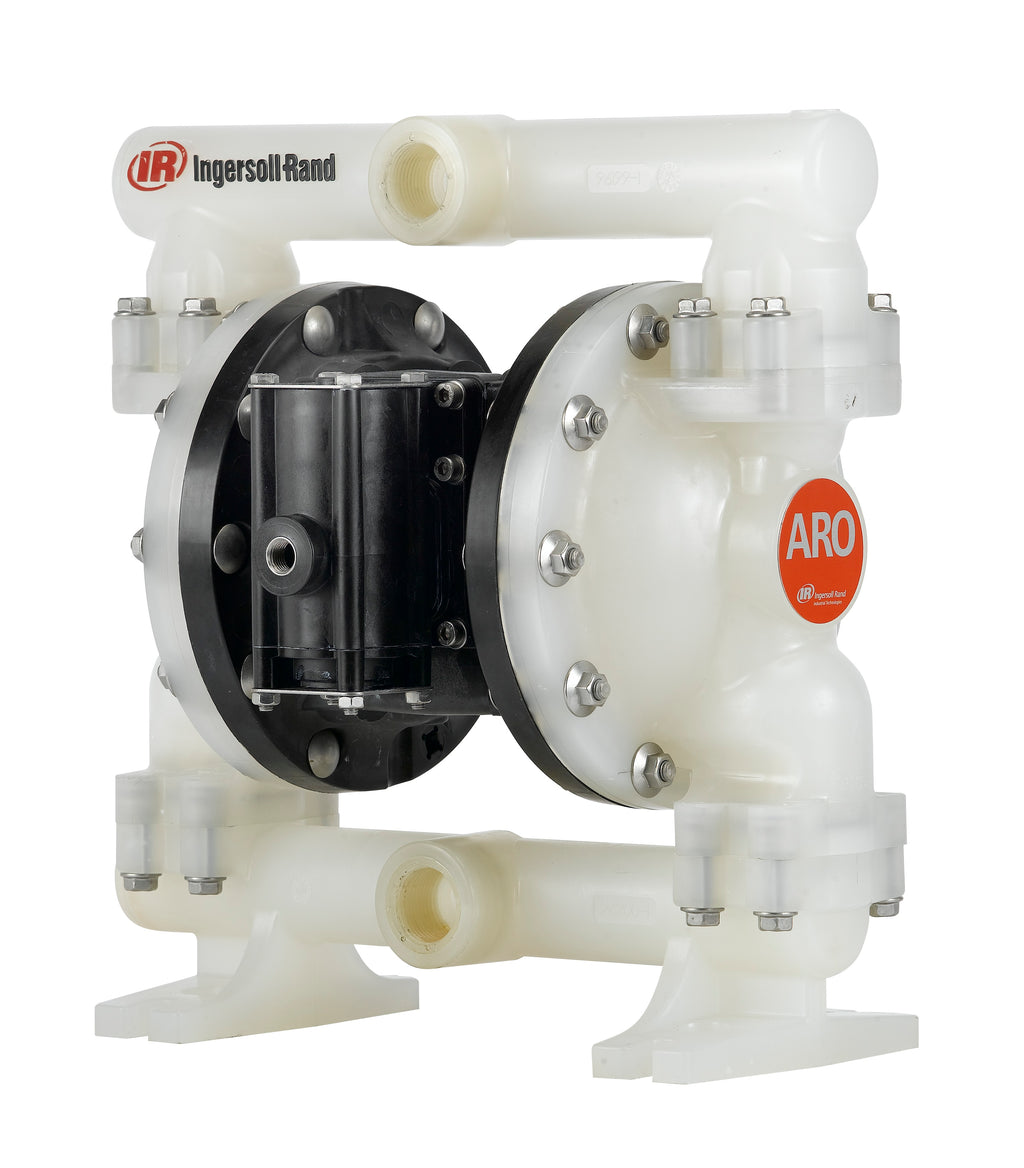

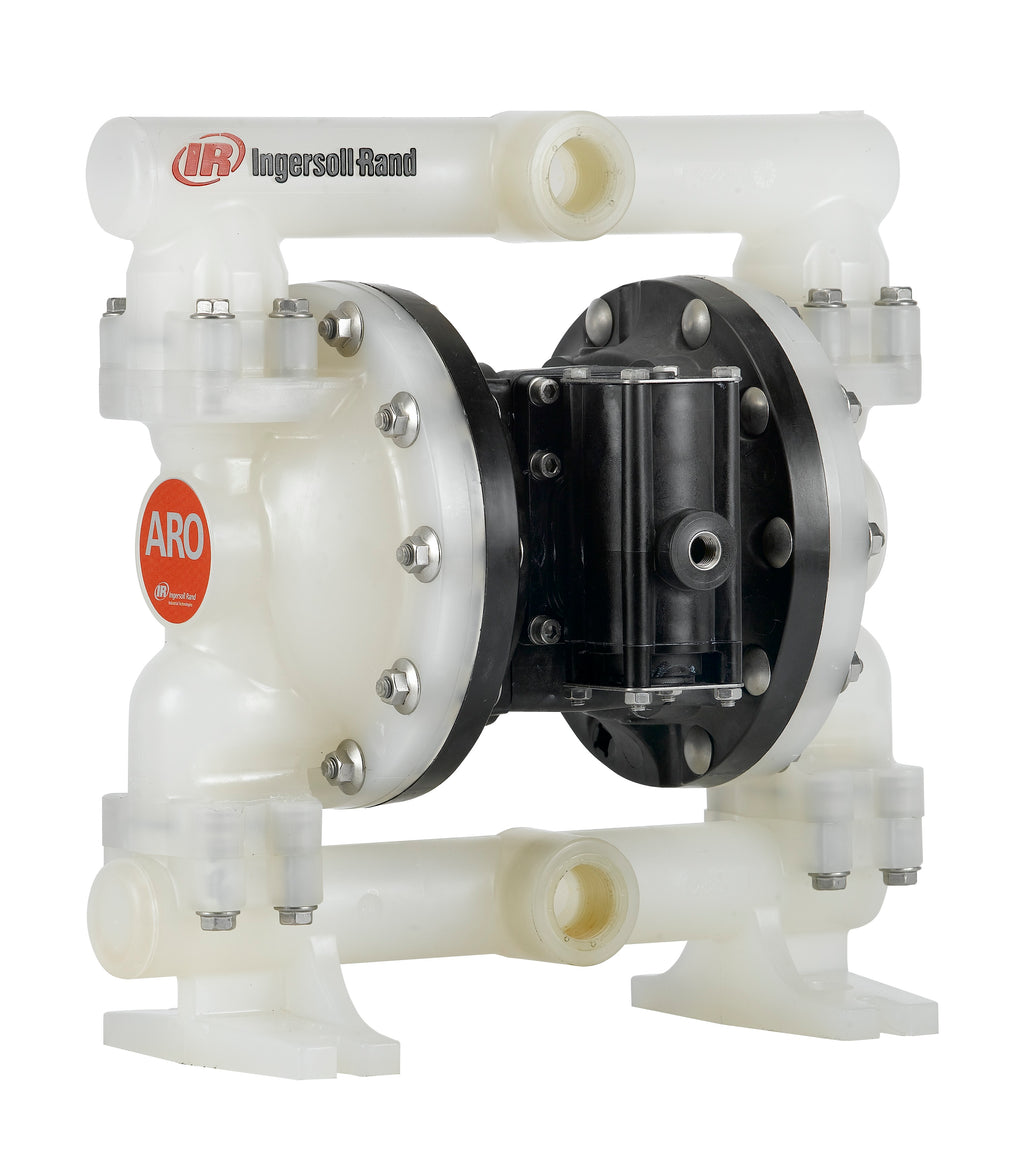

ARO PD10P-FPS-PAA Double-Diaphragm Pump (PP/Santoprene) DN25
The ARO PD10P-FPS-PAA double-diaphragm pump was designed for demanding industrial pumping applications and stands out for its high reliability, durable construction, and efficient fluid transfer.
Thanks to its pneumatic drive, the pump is ideal for safe use in a wide variety of production environments. It is capable of handling low- to high-viscosity fluids such as paints, varnishes, chemicals, adhesives, sealants, and industrial liquids.
Benefits at a glance
- Original ARO double-diaphragm pump
- Pneumatic drive
- Suitable for aggressive and high-viscosity fluids
- Reliable and low-pulsation pumping operation
- High chemical resistance
- Maintenance-friendly design
- Suitable for continuous industrial use
Typical applications
- Paints and Coatings
- Chemicals and solvents
- Adhesives and sealants
- Water Treatment
- Industrial and Process Applications
Technical Specifications
| Manufacturer | ARO |
|---|---|
| model | PD10P-FPS-PAA |
| Pump type | Non-metallic, air-operated double-diaphragm pump |
| Gear ratio | 1:1 |
| Material inlet / outlet | 1" – 11 1/2 NPTF-1 female thread / Rp 1 – 11 BS / 1" ANSIDIN flange |
| Air intake | 1/4" – 18 NPT |
| Air outlet | 3/4" – 14 NPT |
| Weight | approx. 9.01 kg |
| Air pressure range | 1.4–8.3 bar |
| Max. material inlet pressure | 0.69 bar |
| Fluid pressure range | 1.4–8.3 bar |
| Max. flow rate | 200.6 L/min |
| Flow rate per cycle | 0.86 liters |
| Max. particle size | 3.2 mm |
| Noise level | 79.7 dB(A) at 4.8 bar and 60 cpm |
Temperature resistance by material
| EPDM | -51 °C to +138 °C |
|---|---|
| Hytrel | -29 °C to +66 °C |
| nitrile | -12 °C to +82 °C |
| polypropylene | +2 °C to +79 °C |
| PVDF / Kynar | -12 °C to +93 °C |
| Santoprene | -40 °F to +107 °F |
| PTFE | +4 °C to +107 °C |
| Viton | -40 °F to +177 °F |
