Description

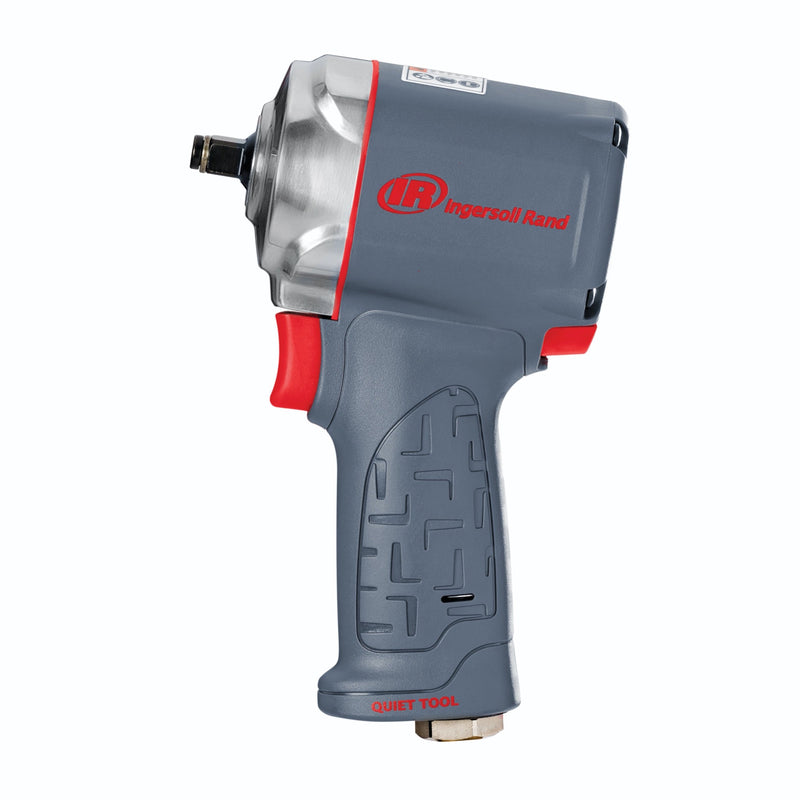

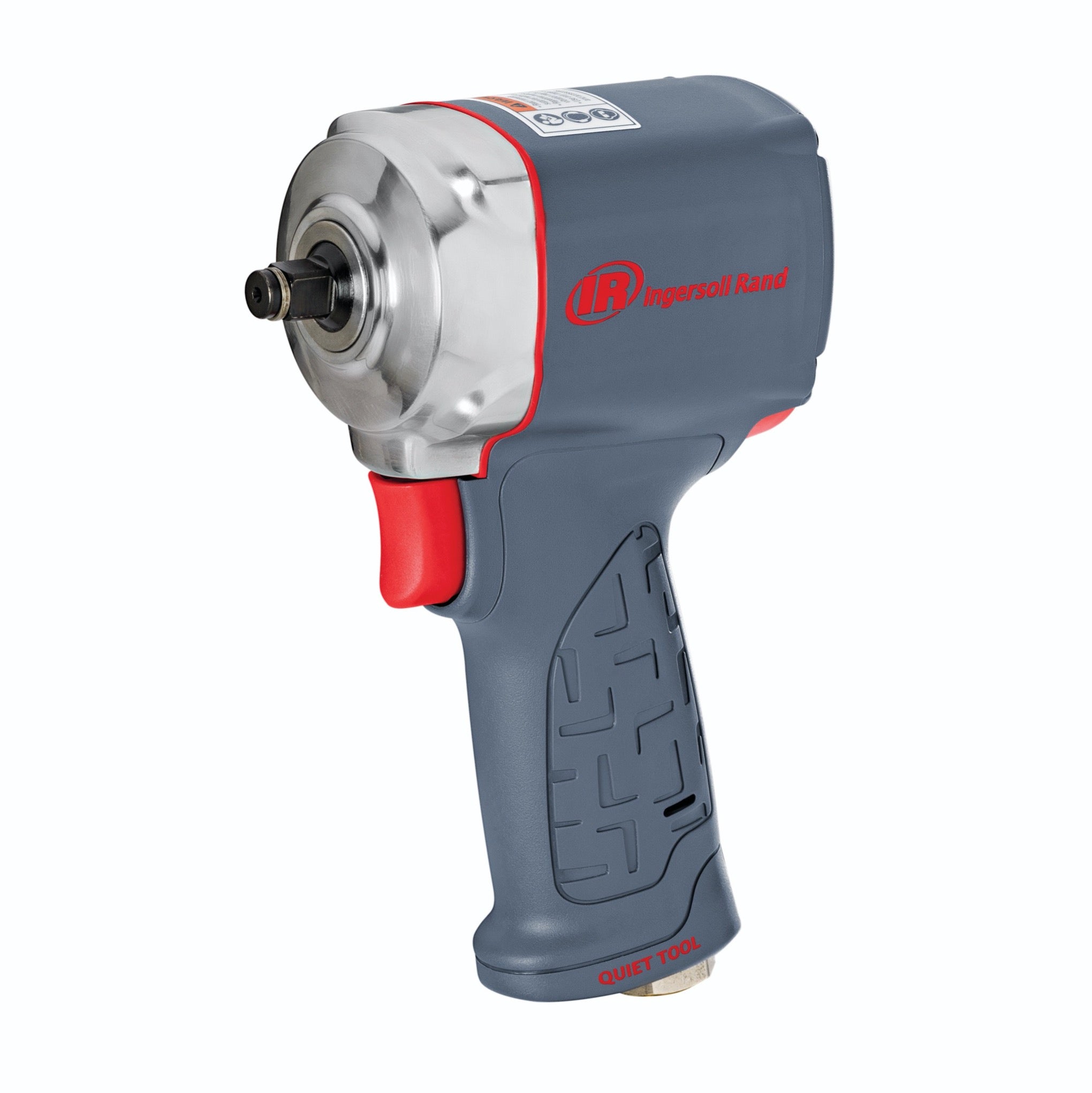

3/8" 15QMAX Ingersoll Rand compact pneumatic impact wrench
- Maximum torque of 520 Nm in reverse
- Weighs only 1.09 kg
- Pressure switch for one-hand reversal
- double striking mechanism
- Three-stage power regulator
- Only 117 mm in length
- Maximum reliability, covered by a 2-year warranty
|
Drive square: |
3/8" with retaining ring |
|
Tightening torque at 6.2 bar: |
420 lb-ft |
|
Breakaway torque at 6.2 bar: |
520 lb-ft |
|
Max. inlet pressure 6.2 bar: |
6.2 bar |
|
Maximum speed: |
6000 rpm |
|
Stroke rate / minute: |
1350 |
|
Compressed air connection: |
¼" NPTF |
|
Required air supply: |
10 mm minimum hose diameter |
|
Maximum air consumption: |
8.02 l/s |
|
Length: |
117 mm |
|
Vibration value according to ISO 28927: |
5.5/0.9 m/s²/ K(1) |
|
Maximum sound level: |
89.7 dB(A) |
|
Silencer: |
Integrated |
|
Weight: |
1.09 kg |
|
ATEX certified: |
No |
| Product Safety Data Sheet | |
| Product information | |
| Spare parts / Parts | |
|
product brochure |
