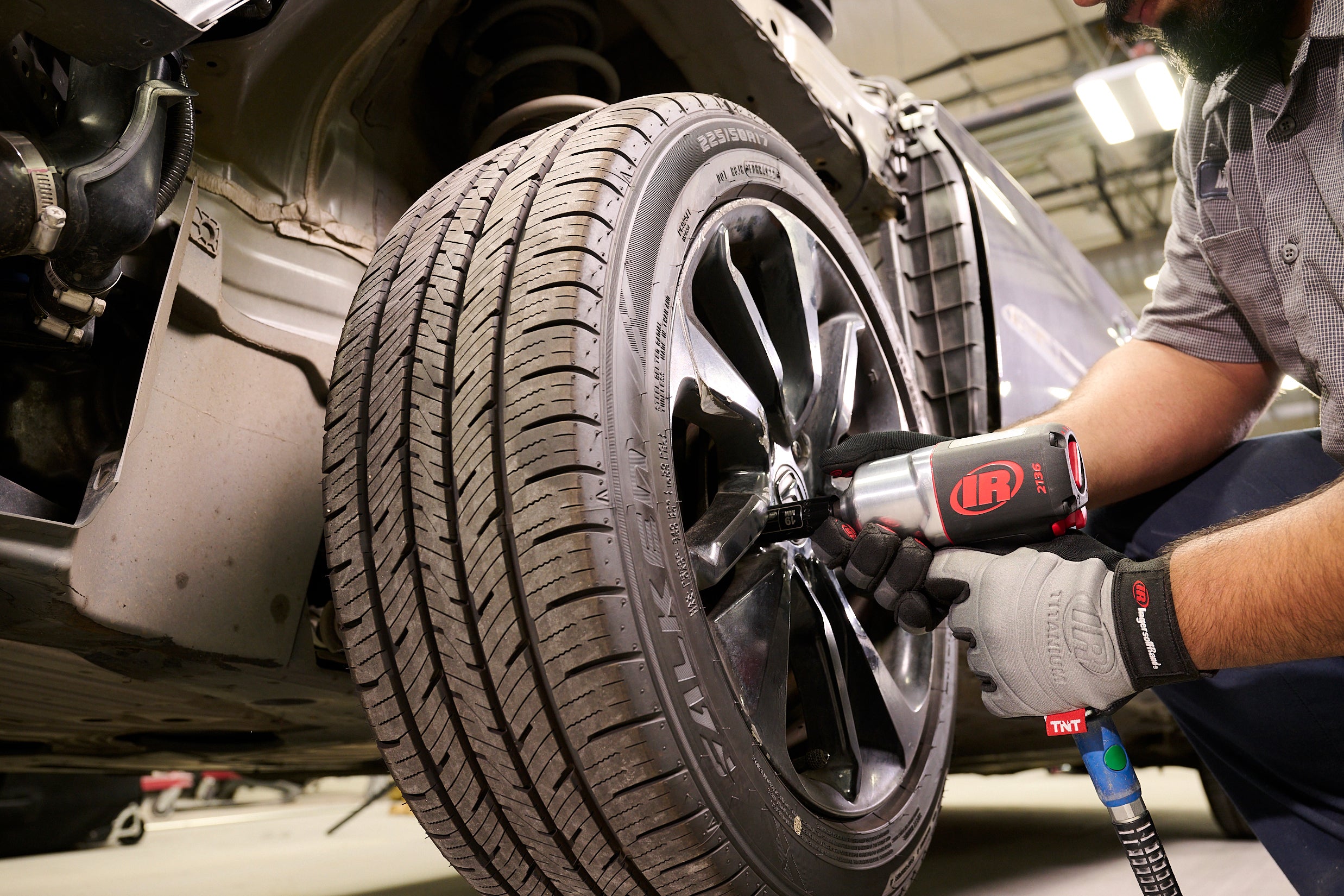

1/2" 2136QXPA Ingersoll Rand pneumatic impact wrench - replaces 2135QXPA
- 1,057 Nm maximum torque, 1,500 Nm in reverse
- Low-noise design

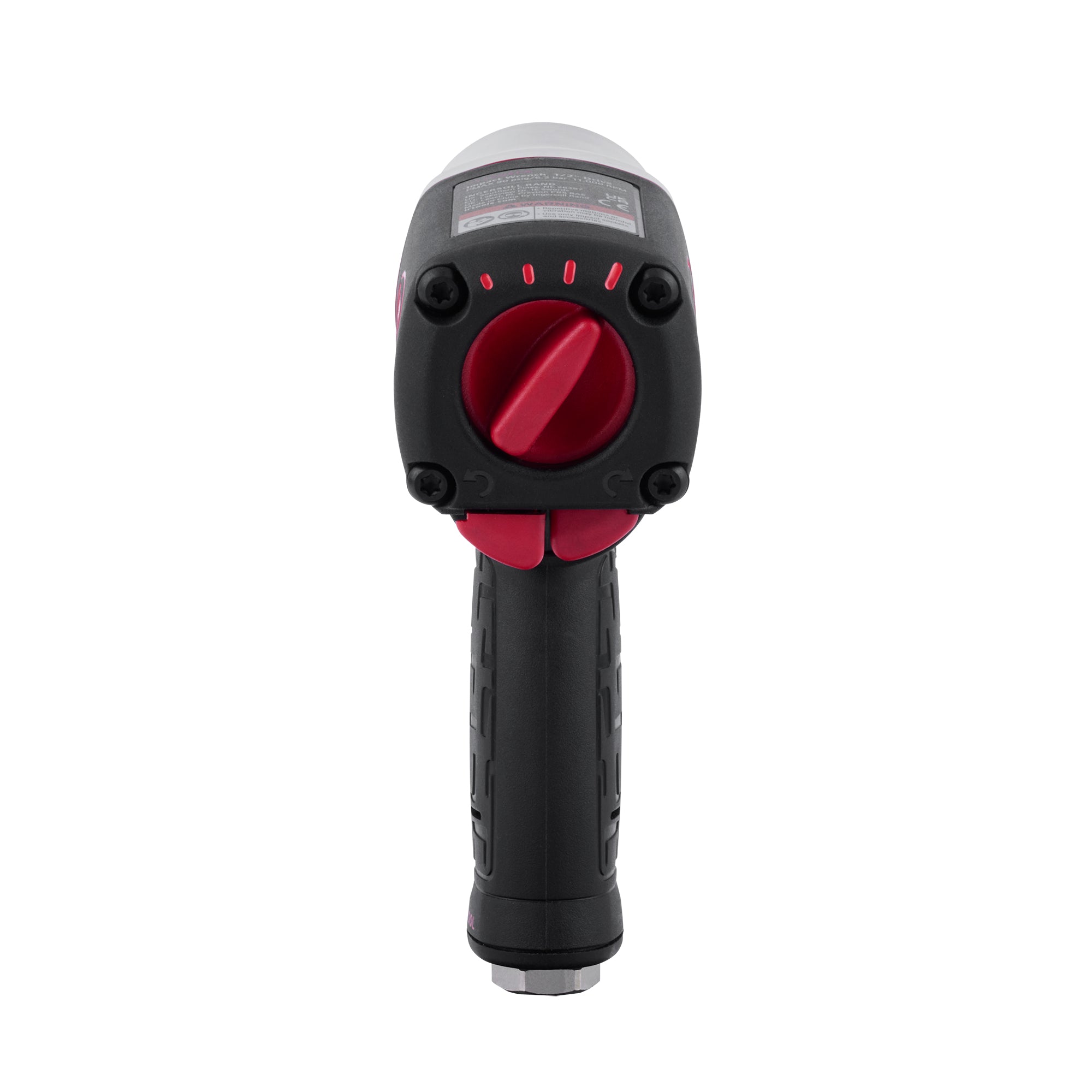

- Four-stage power regulator and one-hand reversal
- composite housing
Drive square:
½" retaining ring
Maximum tightening torque:
949 lb-ft
Maximum breakaway torque:
1,500 Nm
Max. inlet pressure:
6.2 bar
Maximum speed:
9800 rpm
Stroke rate / minute:
1250
Compressed air connection:
¼" NPTF
Required air supply:
10 mm minimum hose diameter
Maximum air consumption:
...11.80 l/s
Length:
7.5 inches
Vibration value ISO28927:
13.3/4.6/s2/K(1)
Maximum sound level:
90.7 dB(A)
Silencer:
Integrated
Weight:
1.8 kg
ATEX certified:
No
