Description

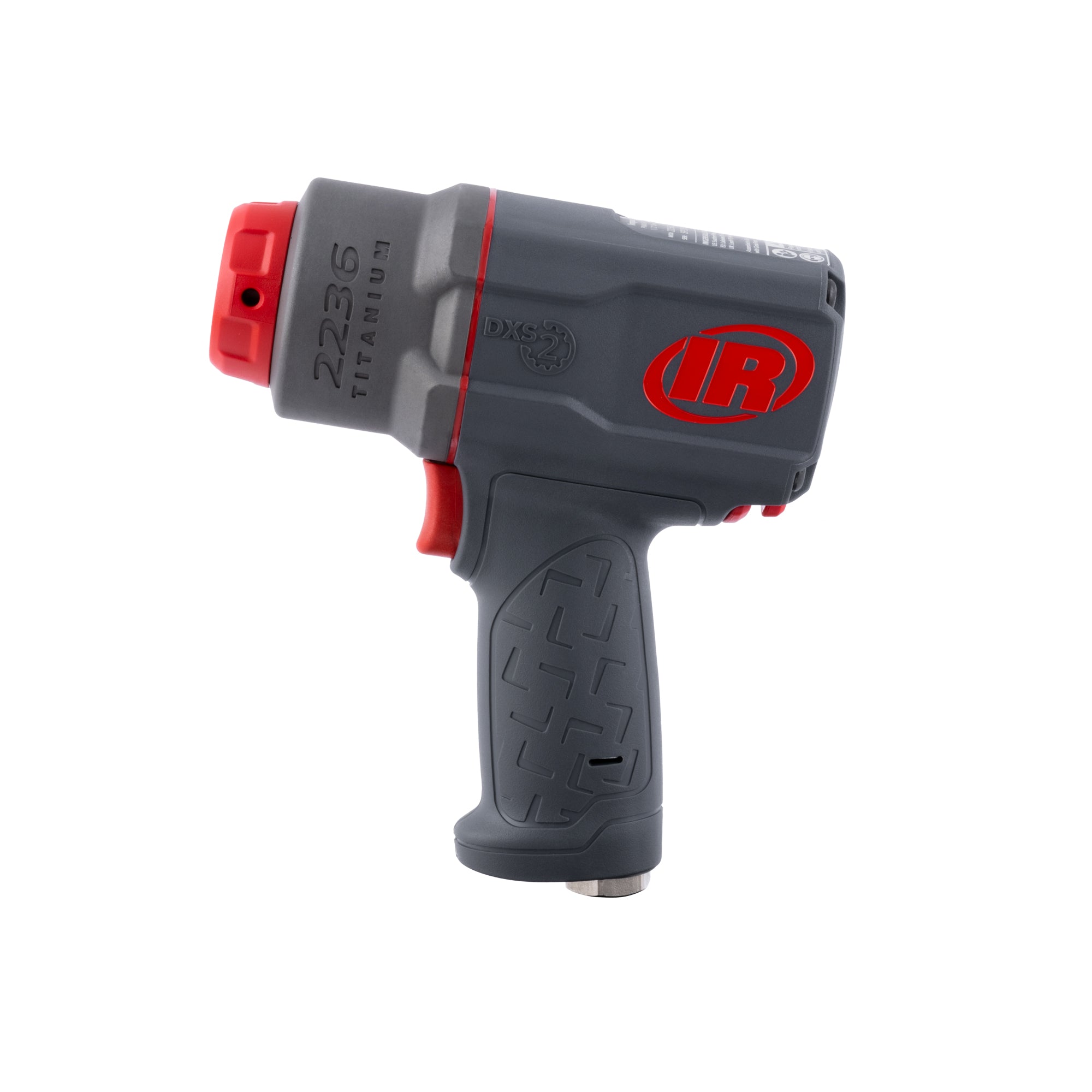

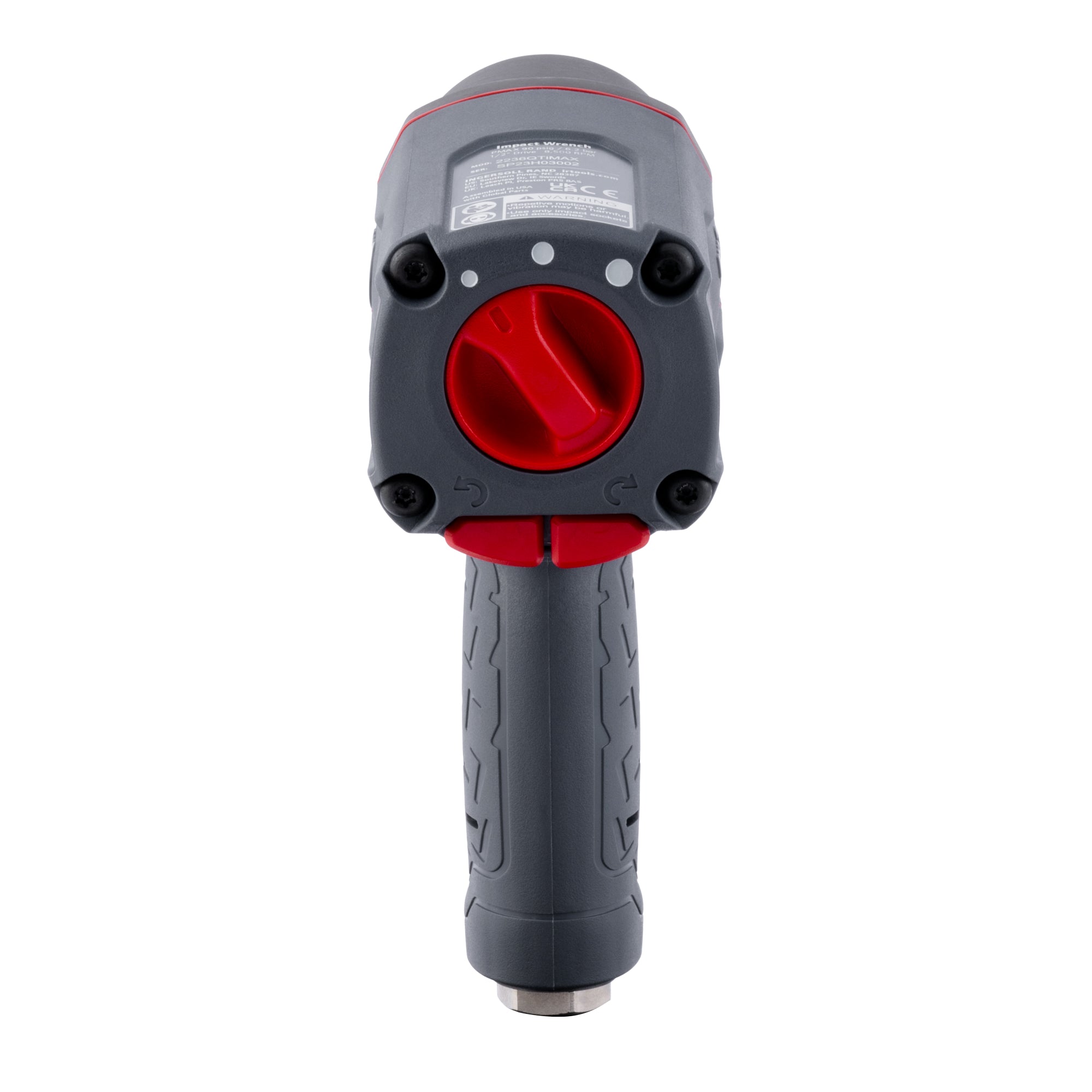

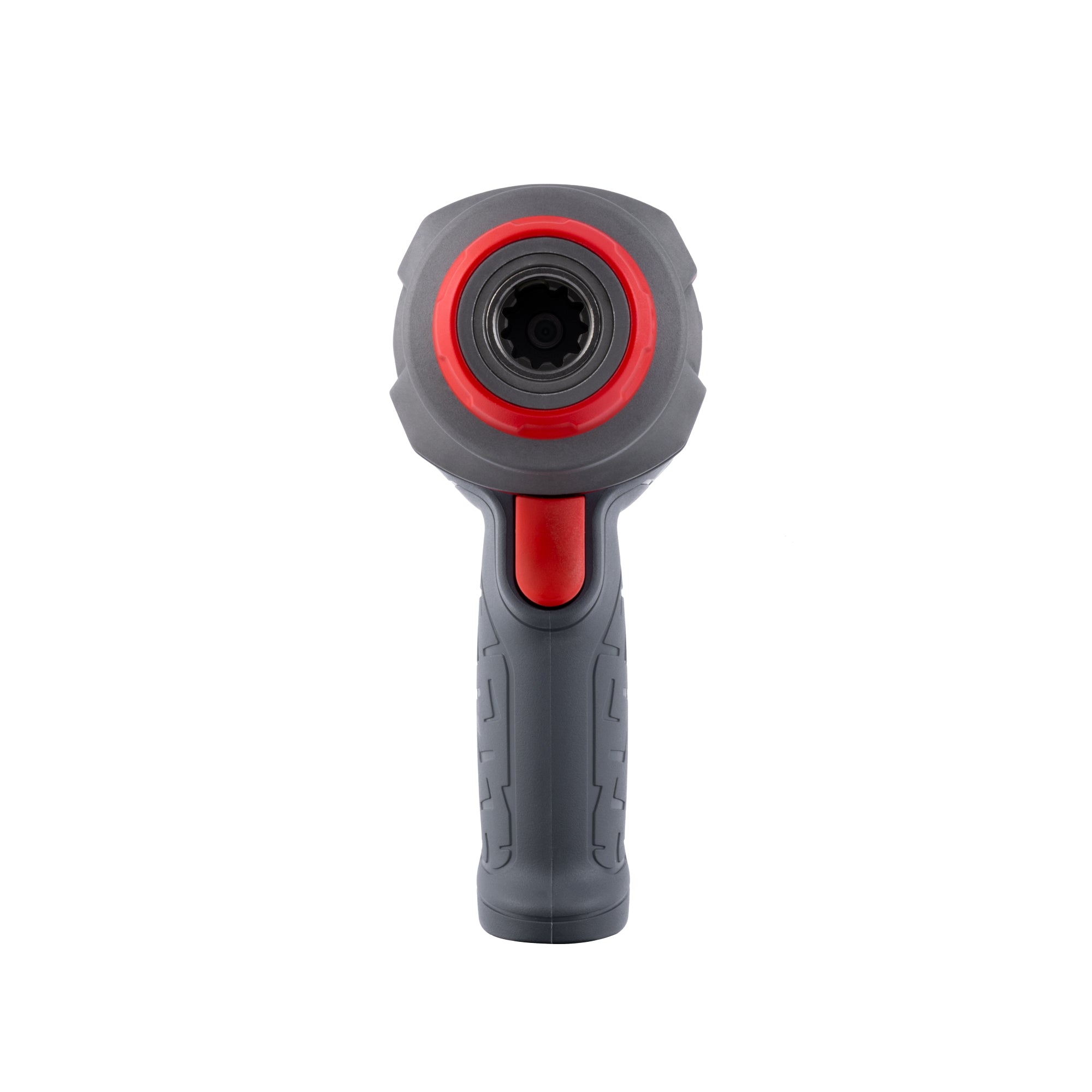

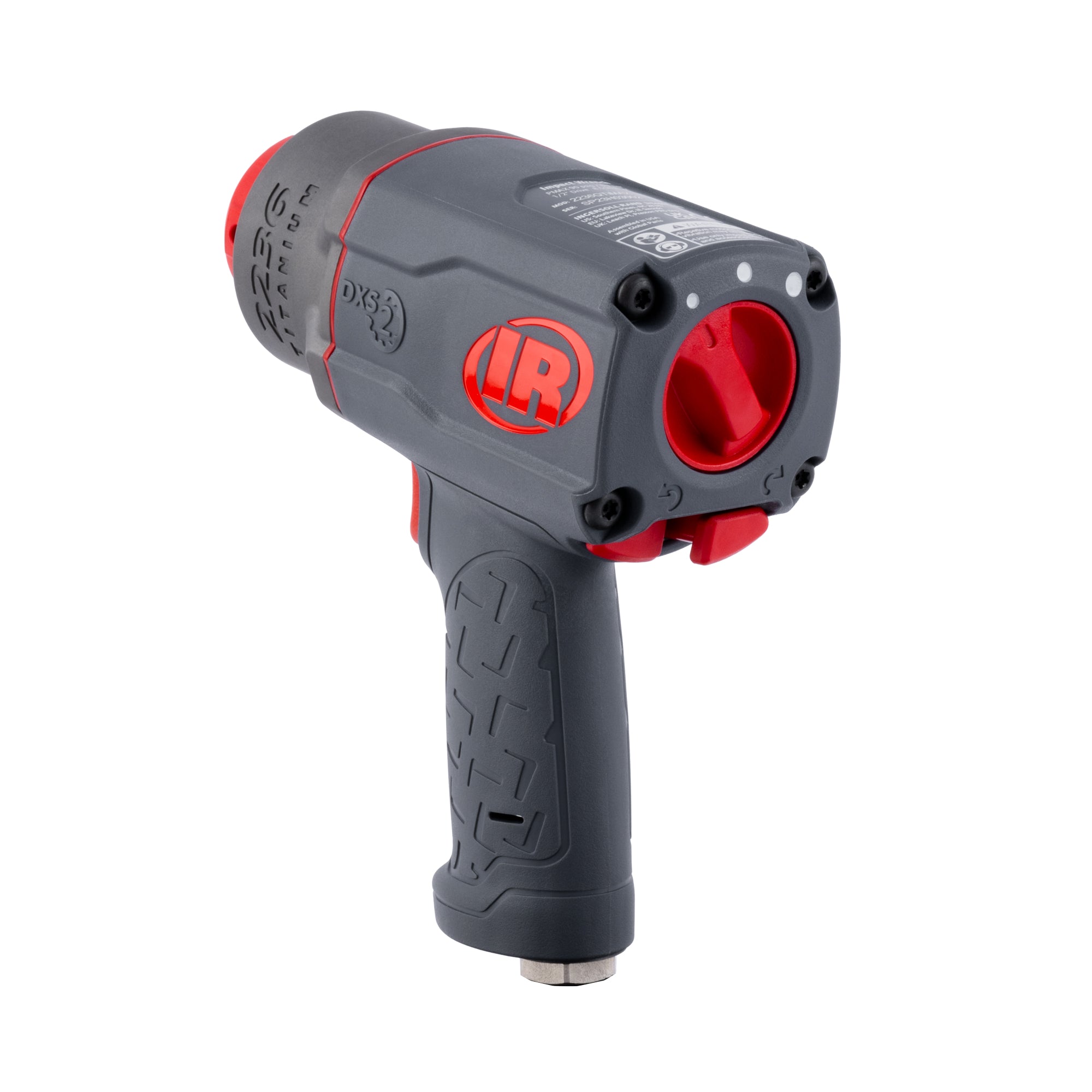

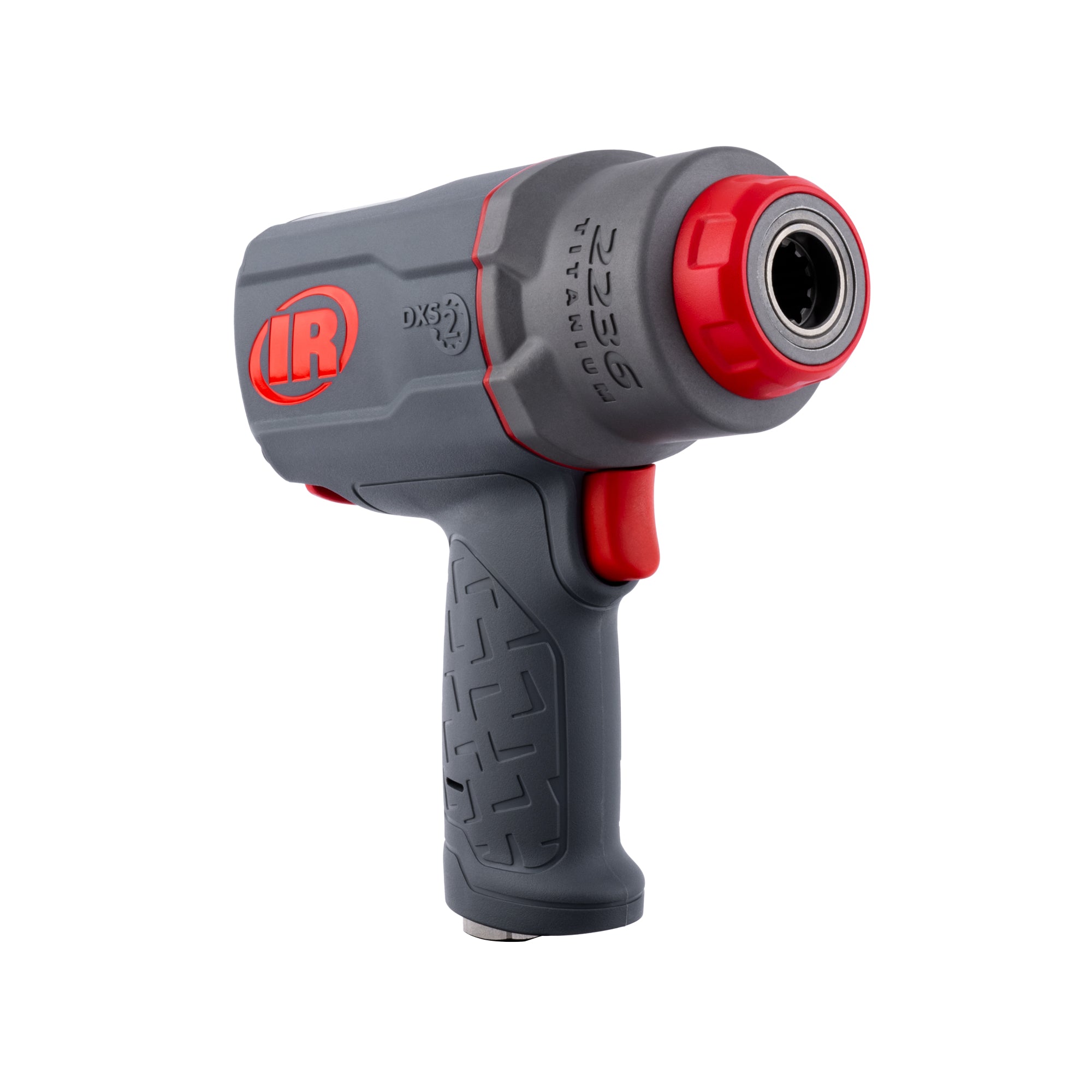

2236QTIMAX Impact Wrench 1/2" with Drive Exchange System DXS
- Maximum power with a breakaway torque of 2034 Nm and a total weight of 1.99 kg
- DXS quick-change system for fast drive changes for 3/8", 1/2", 3/4" and additionally for various lengths
- Maximum durability thanks to a titanium hammer housing, a wear-resistant steel plate, and a composite housing made of composite material
- Maximum reliability, covered by a 2-year warranty
- Quite Tool Technology
- Compact size
- Long service life thanks to a patented lubrication system
|
Drive: |
1/2" square with ring lock |
|
Maximum breakaway torque: |
2034 Nm |
|
Max. inlet pressure: |
6.2 bar |
|
Maximum speed: |
7500 rpm |
|
Stroke rate / minute: |
1350 |
|
Compressed air connection: |
¼" NPTF |
|
Required air supply: |
10 mm minimum hose diameter |
|
Maximum air consumption: |
11.30 l/s |
|
Length: |
7 inches |
|
Vibration value according to ISO 28927: |
9.0/2.8 m/s²/ K(1) |
|
Maximum sound level: |
94.2 dB(A) |
|
Silencer: |
Integrated |
|
Weight: |
1.99 kg |
|
ATEX certified: |
No |
|
|
|
|
Drive change system |
|
| Product Safety Data Sheet | |
| Product information | |
| Spare parts / Parts |
