Description

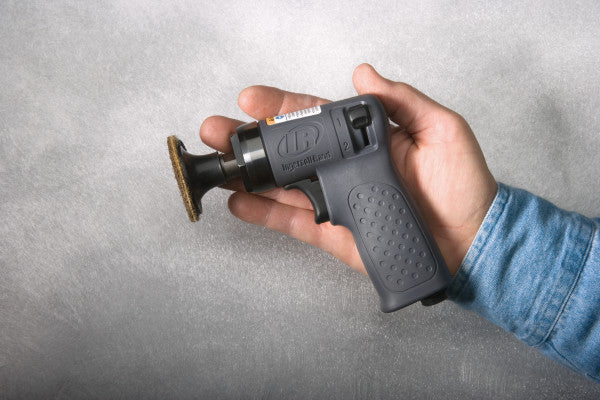

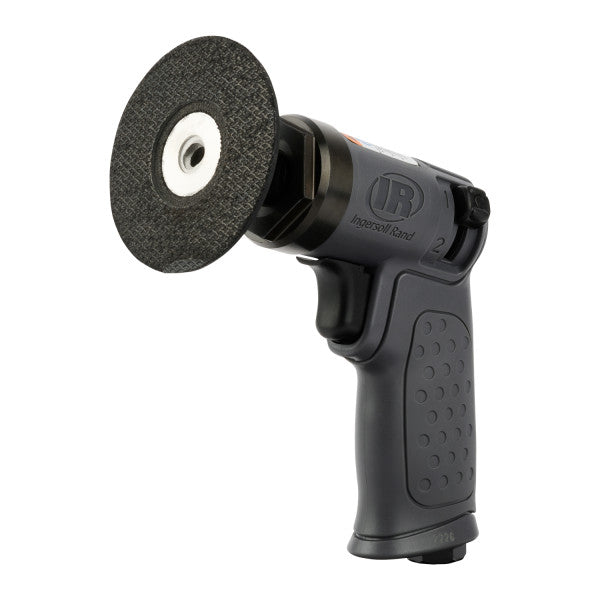

Ingersoll Rand 3103XPA pneumatic grinder, mini grinder without accessories
- 50 mm (2") and 75 mm (3")
- composite housing
- 15,000 rpm
- 0.5 kg weight
- 2-stage power regulator
|
Grinding wheel diameter: |
50 mm and 75 mm |
|
Max. inlet pressure: |
6.2 bar |
|
Maximum speed: |
15,000 rpm |
|
Compressed air connection: |
¼" NPTF |
|
Power: |
0.15 kW (0.2 hp) |
|
Required air supply: |
10 mm minimum hose diameter |
|
Maximum air consumption: |
9.0 l/s |
|
Length: |
135 mm |
|
Vibration value ISO28927: |
4.1/0.8 s²/K(1) |
|
Maximum sound level: |
78.6 dB(A) |
|
Silencer: |
Integrated |
|
Weight: |
0.50 kg |
|
ATEX certified: |
No |
| Product Safety Data Sheet | |
| Product information | |
| Spare parts / Parts | |
| product brochure |
