Specifications
Shipping & Ordering Information
- Delivery time: 2–6 days
- Project pricing and volume discounts available upon request
- Delivery times vary depending on the model
- Technical consulting and design available upon request
Description

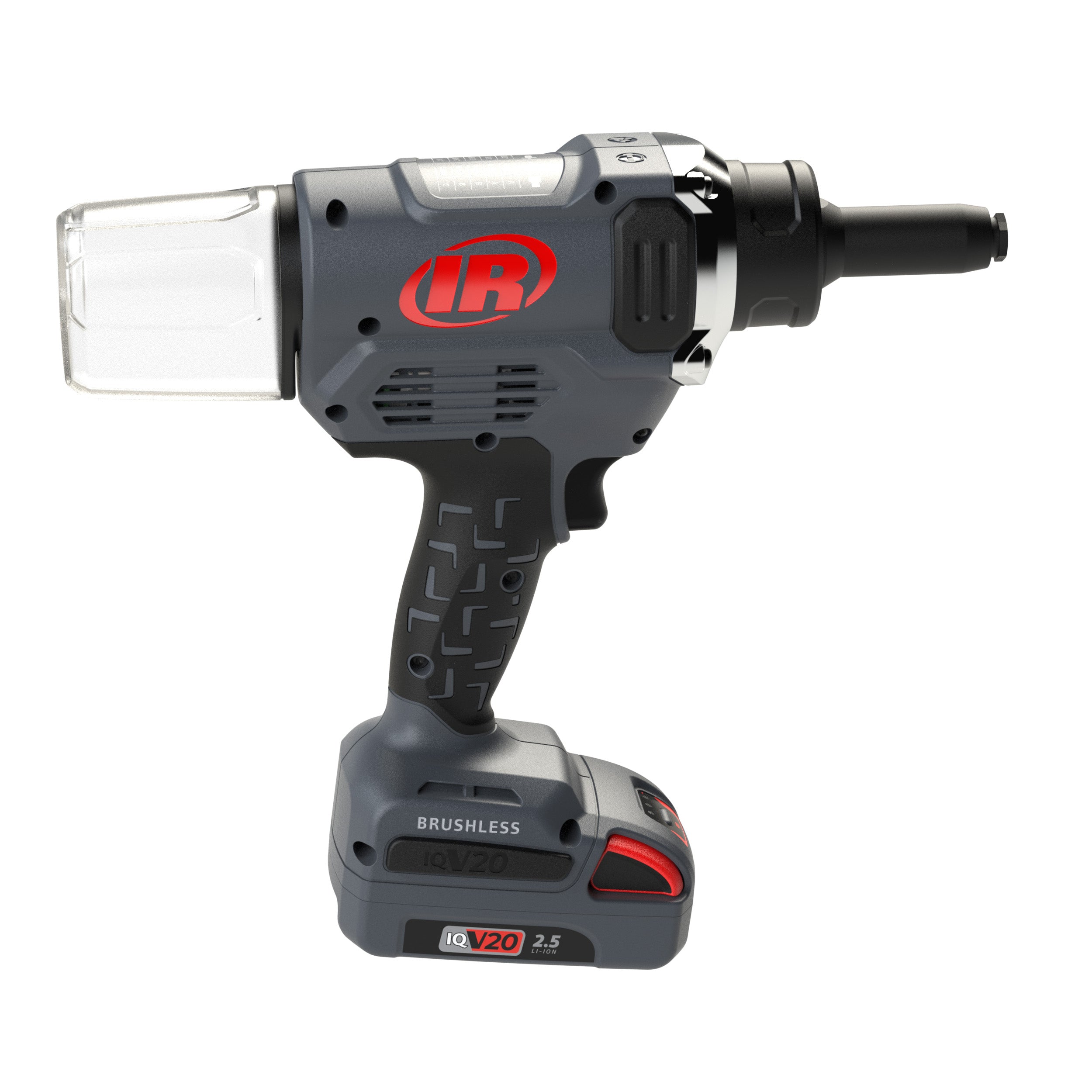

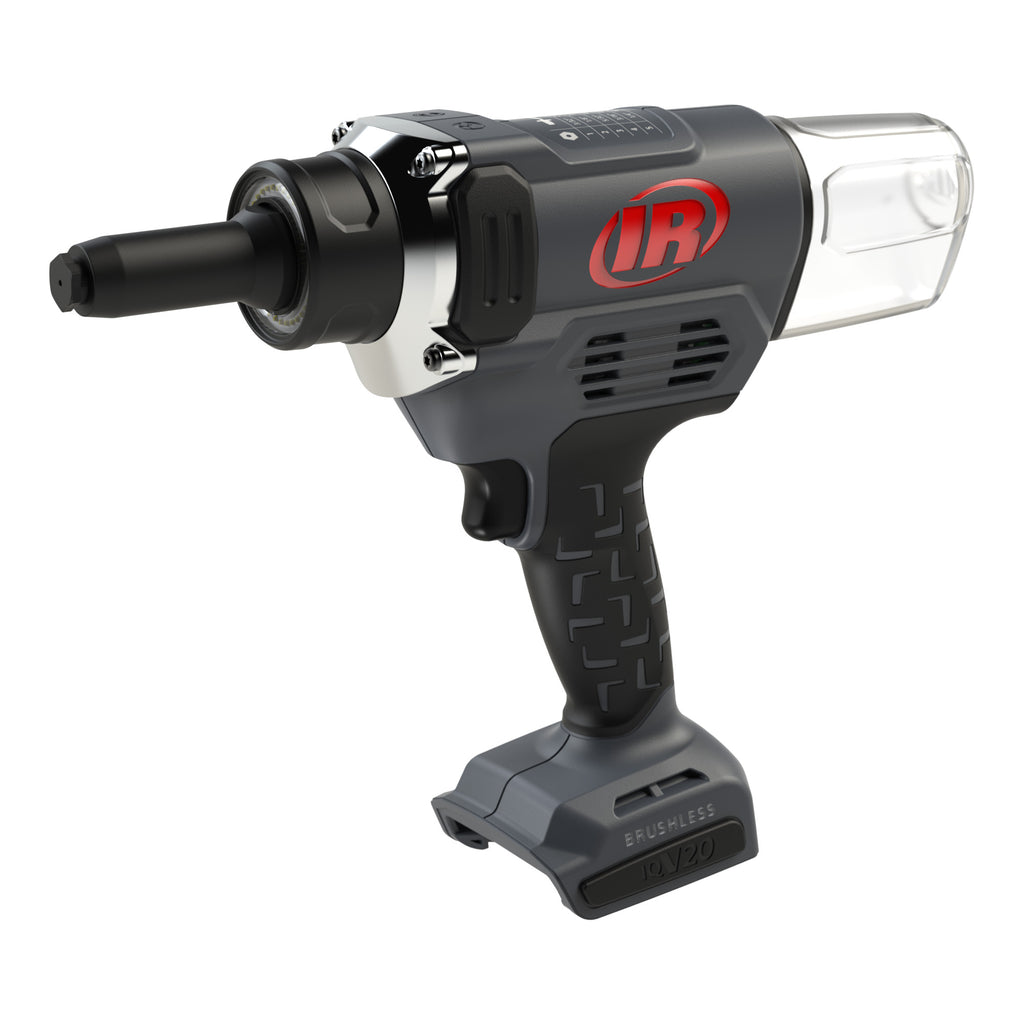

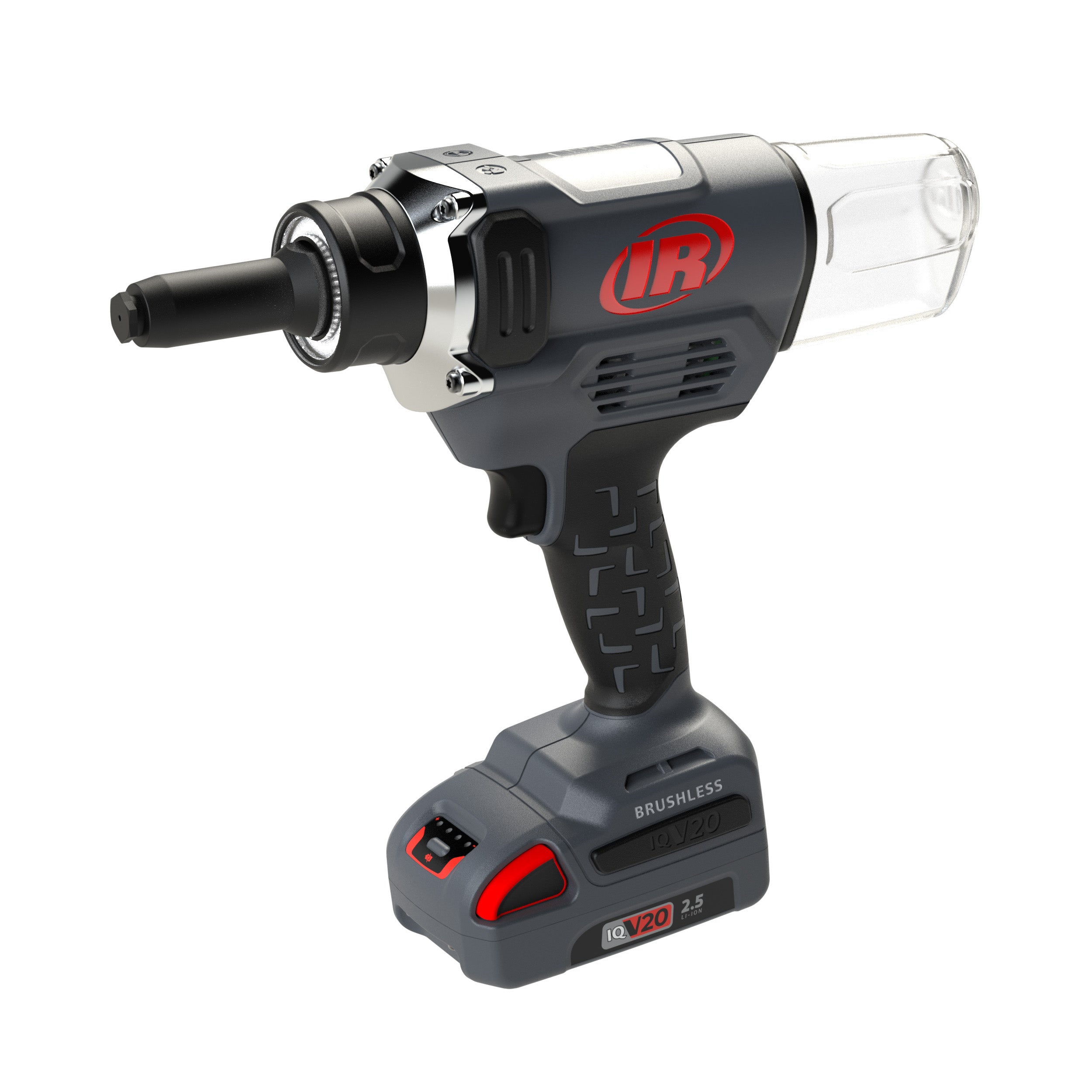

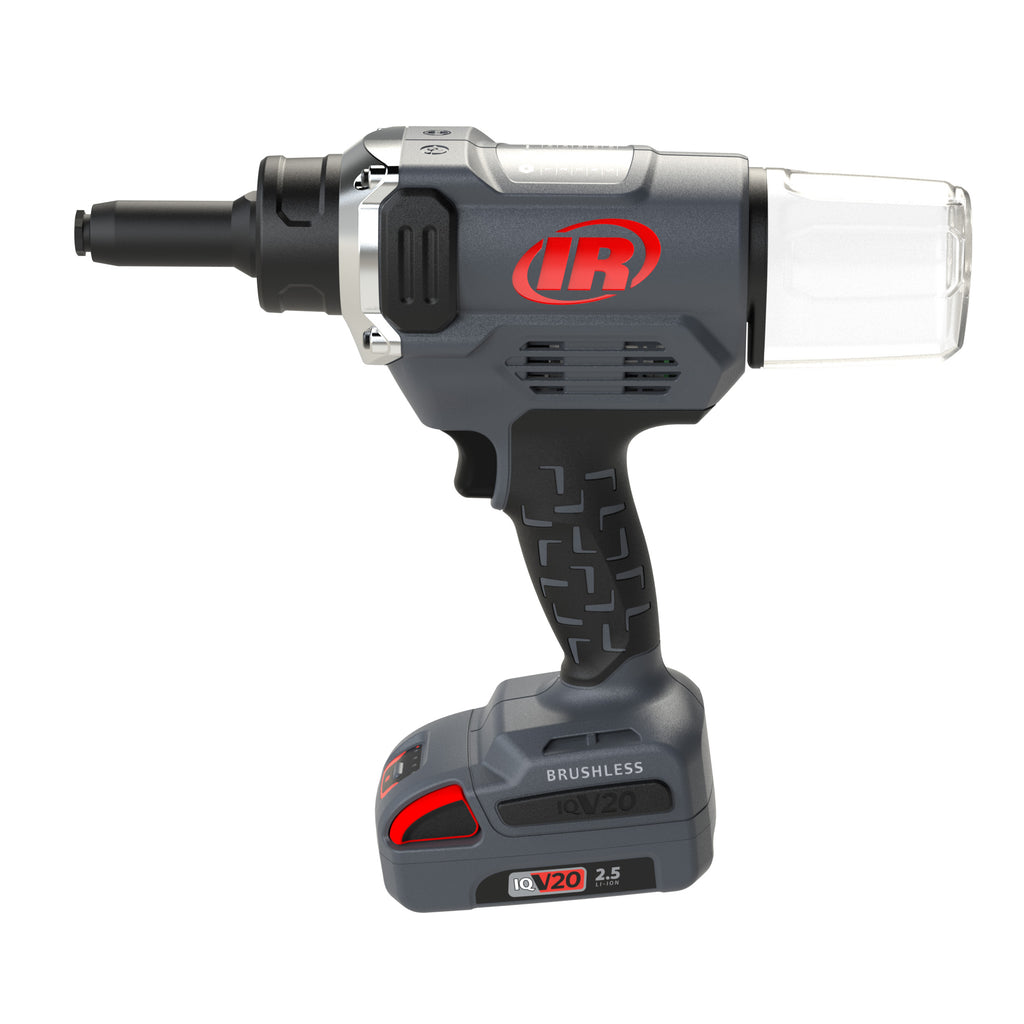

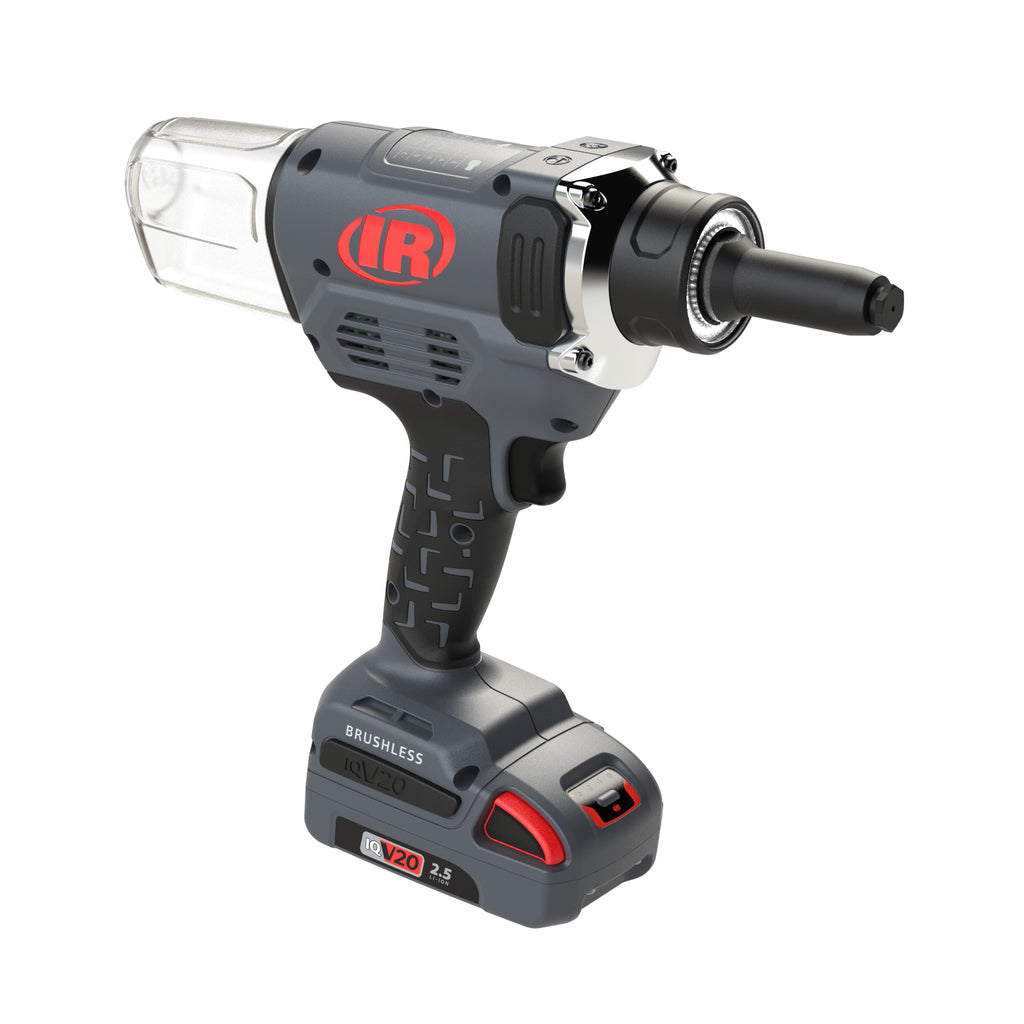

Ingersoll Rand V3121 IQV20™ Cordless Riveter
The V3121 IQV20™ cordless battery-powered riveting tool was designed for professional applications where speed, power, and reliability are critical. With an impressive pulling force of 20 kN (4,500 lbf), a cycle time of just 1.36 seconds, and up to 450 rivets per battery charge, this tool is ideal for industrial assembly work, vehicle repairs, RV construction, and MRO applications.
Thanks to virtually jam-free operation and a powerful brushless motor, you can work efficiently and without interruption—even during intensive use. The ergonomic, cordless design ensures maximum freedom of movement and a high level of user comfort.
Benefits at a glance
- 20 kN (4,500 lbf) pulling force for demanding riveting applications
- Up to 450 rivets per battery charge (2.5 Ah battery)
- Up to 1,600 rivets per charge with a 5.0 Ah battery
- Extremely fast cycle time of just 1.36 seconds
- Supports rivet sizes from 2.4 to 6.4 mm (¼”)
- Suitable for steel, aluminum, and stainless steel rivets
- Brushless motor for long service life and low maintenance
- 99.99% jam-free operation for maximum productivity
- 360° LED ring light with 40 lumens for optimal visibility
- Transparent thorn collector with a capacity of 50 pieces
- Compatible with all Ingersoll Rand IQV20™ batteries
Ideal for
- Vehicle and Body Repair
- Motorhome and Trailer Manufacturing
- Industrial Maintenance and Repair (MRO)
- Metal and Sheet Metal Fabrication
- Installation work in professional settings
|
Specifications |
Details |
|---|---|
|
Maximum pulling force |
20 kN (4,500 lbf) |
|
Rivet sizes |
2.4 / 3.2 / 4.0 / 4.8 / 6.4 mm |
|
Sizes |
3/32", 1/8", 5/32", 3/16", 1/4" |
|
Riveting materials |
Steel, aluminum, stainless steel |
|
Stroke length |
25.4 mm (1.0 in.) |
|
Cycle time |
1.36 seconds |
|
Engine |
Brushless |
|
Work light |
360° LED ring light, 40 lumens |
|
Net weight |
1.7 kg |
|
Thorn collector |
Transparent, 50-piece capacity |
|
Battery performance |
450 rivets (2.5 Ah) / 1,600 rivets (5.0 Ah) |
