QXXD Precision Cordless Screwdriver QX Connect Series™ Ingersoll Rand

QXXD Precision Cordless Screwdriver QX Connect Series™ Ingersoll Rand

• Accuracy: Ingersoll Rand's patented torque and angle sensor control circuit is at the heart of the tool. This enables precise torque and accurate, traceable results - maximum precision where it is needed.
• Control: A multi-function display module allows quick programming of each QX Connect Series tool and provides direct feedback on each bolting operation. Each tool offers eight programmable configurations for torque, angle and speed. This allows one tool to replace eight others, saving costs and keeping the assembly area tidy.
• Comfort: Compact, lightweight and ergonomically balanced. The installer can work precisely without effort. Battery-powered and compact, the QX Connect series is designed for safe and clean operation.
• Communication: A wireless communication option for the process communication module (PCM) developed by Ingersoll Rand enables integration of the mold and assembly line into a plant-wide network. Real-time data management, process control and adjustment of mold configurations via Ethernet, fieldbus or I/O.

The building blocks of masterful engineering:

• User-friendly display for result display and programming - Up to eight programmable screwdriving configurations - Stores cycle data for up to 1,200 screwdriving operations
• Patented encoder - High accuracy torque and angle measurement - Ultimate process control
• Digital signal processor - Highly accurate drive control - Transmits result data - No more need for expensive external controllers
• Advanced power supply module - DC drive control based on programmable torque, angle and speed profiles - Voltage modulation from Li-Ion battery for optimum performance
• Intelligent Radio Module - Optional feature to wirelessly transmit results data to the Process Communication Module (PCM) - the PCM transmits the data via Ethernet, fieldbus, or I/O to the database or assembly line control system
• Brushless DC motor - Controls the QX Connect Series precision drive - No carbon brushes to plug or leave residue - Efficient rare earth based magnetic drive rated for over one million cycles.

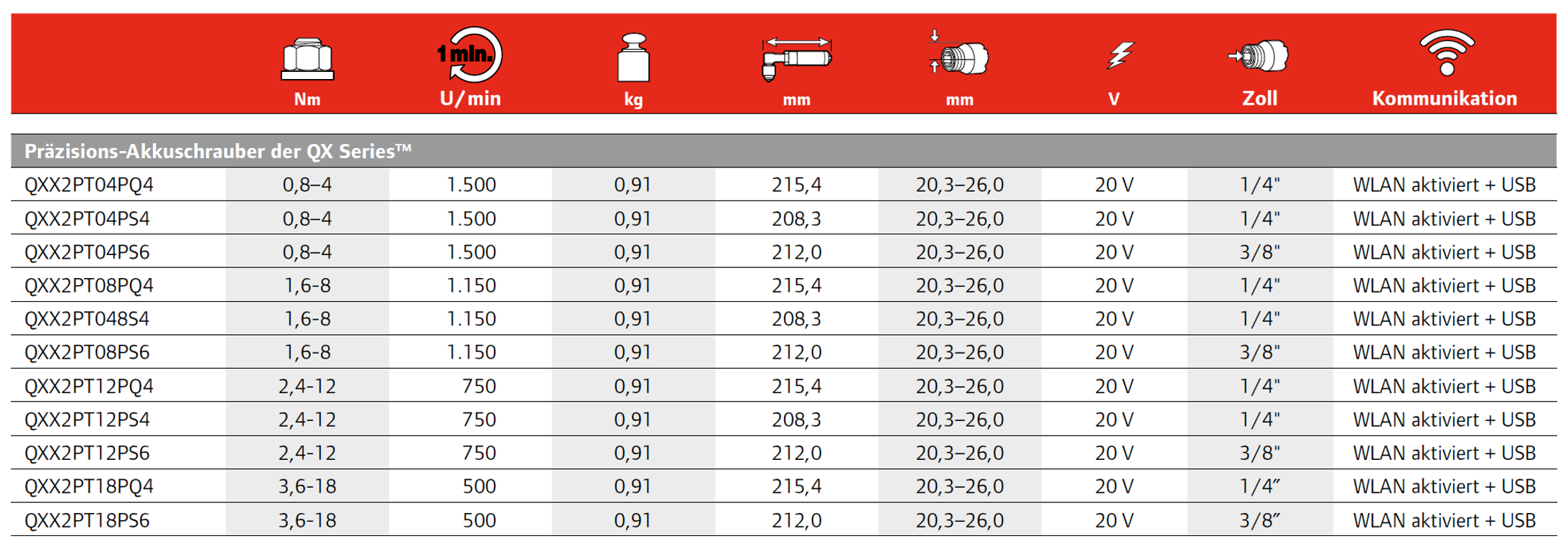

Please choose one of the variants - these are listed in the graphic. You can find more information in the brochure below. When selecting the tool group (QXFN, QXFD, QXXD), the graphic in the QX Connect Series™ Ingersoll Rand precision screwdriving systems category will help you. If you have any questions, please feel free to contact us and we will advise you in detail.
