Description

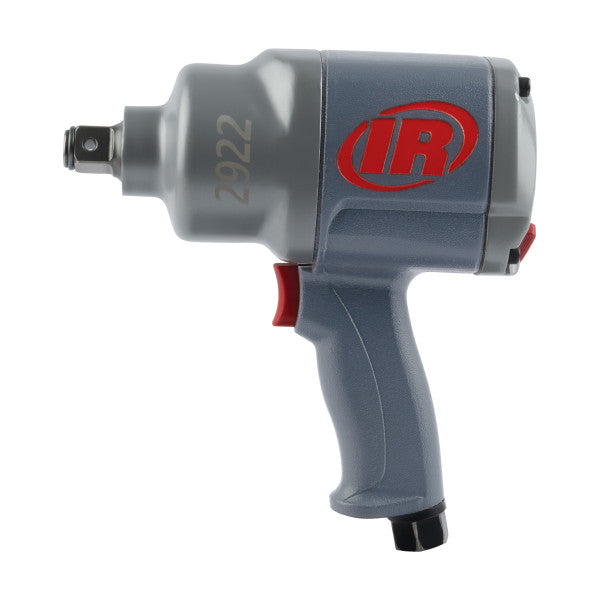

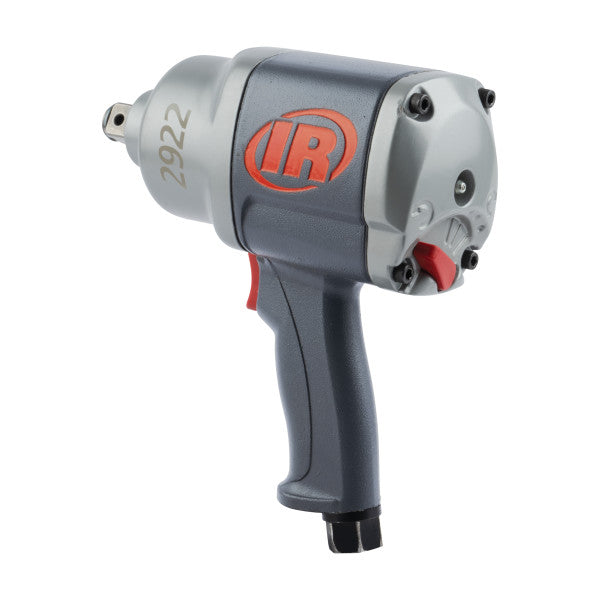

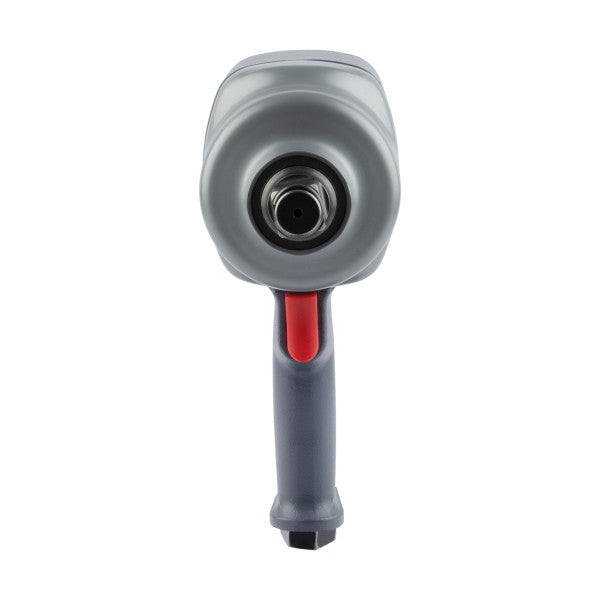

Impact wrench 2922P1 3/4" Ingersoll Rand pneumatic
- Maximum performance in reverse with a breakaway torque of 2700 Nm
- Pressure lubrication through double hammer mechanism
- Forged drive square
- Durable all-metal hammer with housing and aluminum body
- Best weight/performance ratio
- Manufactured in Southern Pines, NC, U.S.A.
|
Drive square: |
3/4" with retaining ring |
|
Tightening torque at 6.2 bar: |
1490 Nm |
|
Breakaway torque at 6.2 bar: |
2700 N·m |
|
Max. inlet pressure: |
6.2 bar |
|
Maximum speed: |
5200 rpm |
|
Stroke rate / minute: |
1050 |
|
Compressed air connection: |
3/8" NPTF |
|
Required air supply: |
13 mm minimum hose diameter |
|
Maximum air consumption: |
1699 l/m |
|
Length: |
226 mm |
|
Vibration value according to ISO 28927: |
10.5/1.0 m/s2 |
|
Maximum sound level: |
106.9 dB(A) |
|
Silencer: |
Integrated |
|
Weight: |
5.4 kg |
|
ATEX certified: |
No |
| Product Safety Data Sheet | |
| Product information | |
| Spare parts / Parts | |
|
maintenance manual |
|
| CE certificate | |
|
product brochure |
